Texas Instruments
TMS5703137CGWTQEP
TMS5703137CGWTQEP
Regular price
$23.24 USD
Regular price
Sale price
$23.24 USD
Unit price
per
Couldn't load pickup availability

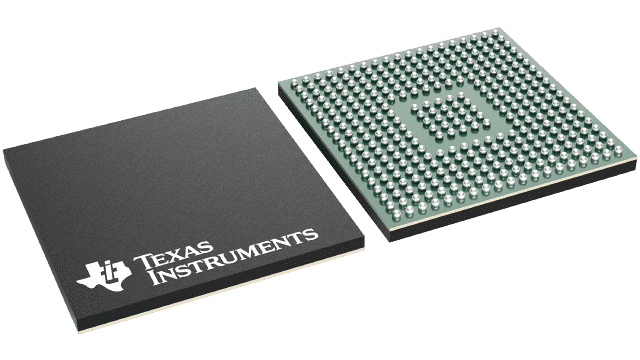

TMS5703137CGWTQEP Texas Instruments - Yeehing Electronics
Enhanced Product 16/32 Bit RISC Flash Arm Cortex-R4F, EMAC, FlexRay
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 50.801 |
| 100 — 249 | 45.156 |
| 250 — 999 | 37.121 |
| 1,000 + | 23.24 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | ARM Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | nFBGA-337 |
| Series | TMS570LS3137-EP |
| Core | ARM Cortex R4F |
| Data Bus Width | 32 bit/16 bit |
| Maximum Clock Frequency | 180 MHz |
| Program Memory Size | 3 MB |
| Data RAM Size | 256 kB |
| ADC Resolution | 12 bit |
| Number of I/Os | 144 I/O |
| Operating Supply Voltage | 1.2 V |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Tray |
| Product | MCU+FPU |
| Program Memory Type | Flash |
| Brand | Texas Instruments |
| Data RAM Type | RAM |
| Data ROM Size | 64 kB |
| Data ROM Type | EEPROM |
| Interface Type | CAN, I2C, SCI/LIN, SPI |
| Analog Supply Voltage | 3 V to 5.25 V |
| I/O Voltage | 3.3 V |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 24 Channel |
| Processor Series | TMS570 |
| Product Type | ARM Microcontrollers - MCU |
| Factory Pack Quantity | 90 |
| Subcategory | Microcontrollers - MCU |
| Supply Voltage - Max | 1.32 V |
| Supply Voltage - Min | 1.14 V |
| Watchdog Timers | Watchdog Timer, Windowed |
| Part # Aliases | V62/13629-01XE |
| Unit Weight | 0.024096 oz |
For more information, please refer to datasheet
Documents
| TMS5703137CGWTQEP Datasheet |
More Information
The TMS570LS3137-EP device is a high-performance microcontroller family for safety systems. The safety architecture includes the following:
