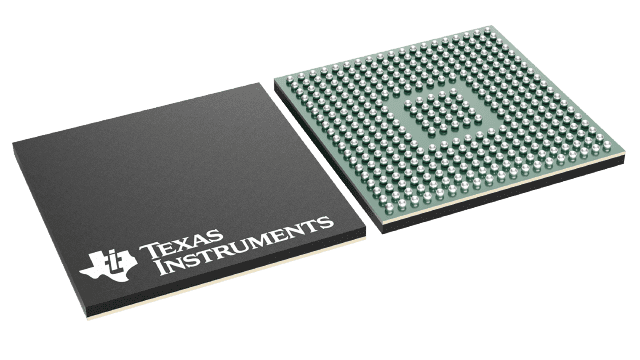

TMS5703137DZWTQQ1 Texas Instruments - Yeehing Electronics
16/32 Bit RISC Flash MCU, Arm Cortex-R4F, EMAC, FlexRay
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 28.279 |
| 100 — 249 | 25.137 |
| 250 — 999 | 20.664 |
| 1,000 + | 12.94 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | ARM Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | NFBGA-337 |
| Series | TMS570LS3135 |
| Core | ARM Cortex R4F |
| Data Bus Width | 32 bit/16 bit |
| Maximum Clock Frequency | 180 MHz |
| Program Memory Size | 3072 kB |
| Data RAM Size | 256 kB |
| ADC Resolution | 12 bit |
| Number of I/Os | 144 I/O |
| Operating Supply Voltage | 1.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Qualification | AEC-Q100 |
| Product | MCU+FPU |
| Program Memory Type | Flash |
| Brand | Texas Instruments |
| Data RAM Type | RAM |
| Data ROM Size | 64 kB |
| Data ROM Type | EEPROM |
| Interface Type | CAN, I2C, SCI/LIN, SPI |
| Analog Supply Voltage | 3 V to 5.25 V |
| I/O Voltage | 3.3 V |
| Moisture Sensitive | Yes |
| Number of ADC Channels | 24 Channel |
| Processor Series | TMS570 |
| Product Type | ARM Microcontrollers - MCU |
| Factory Pack Quantity | 90 |
| Subcategory | Microcontrollers - MCU |
| Supply Voltage - Max | 1.32 V |
| Supply Voltage - Min | 1.14 V |
| Watchdog Timers | Watchdog Timer, Windowed |
| Unit Weight | 0.023016 oz |
For more information, please refer to datasheet
Documents
| TMS5703137DZWTQQ1 Datasheet |
More Information
The TMS570LS3137 device is a high-performance automotive-grade microcontroller family for safety systems. The safety architecture includes dual CPUs in lockstep, CPU and memory BIST logic, ECC on both the flash and the data SRAM, parity on peripheral memories, and loopback capability on peripheral I/Os.
