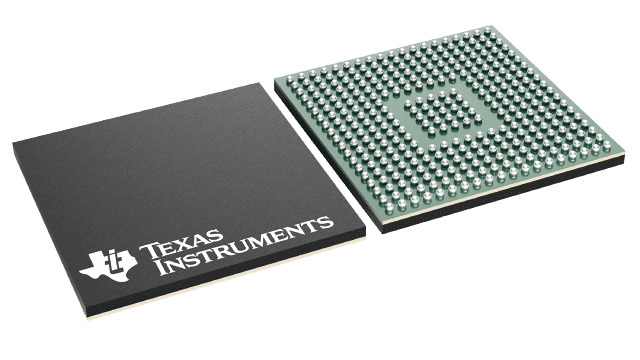

TMS5704357BZWTQQ1 Texas Instruments - Yeehing Electronics
16/32 Bit RISC Flash MCU, Arm Cortex-R5F, EMAC, FlexRay, Auto Q-100
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 128.14 |
| 100 — 249 | 123.32 |
| 250 — 999 | 114.58 |
| 1,000 + | 109.59 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | ARM Microcontrollers - MCU |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | NFBGA-337 |
| Series | TMS570LC4357 |
| Core | ARM Cortex R5F |
| Data Bus Width | 32 bit |
| Maximum Clock Frequency | 300 MHz |
| Program Memory Size | 4096 kB |
| Data RAM Size | 4 MB |
| ADC Resolution | 12 bit |
| Number of I/Os | 45 I/O |
| Operating Supply Voltage | 1.14 V to 1.32 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Qualification | AEC-Q100 |
| Product | MCU |
| Brand | Texas Instruments |
| Data ROM Size | 128 kB |
| Interface Type | I2C, SPI |
| Moisture Sensitive | Yes |
| Product Type | ARM Microcontrollers - MCU |
| Factory Pack Quantity | 90 |
| Subcategory | Microcontrollers - MCU |
| Supply Voltage - Max | 1.32 V |
| Supply Voltage - Min | 1.14 V |
| Watchdog Timers | Watchdog Timer, Windowed |
For more information, please refer to datasheet
Documents
| TMS5704357BZWTQQ1 Datasheet |
More Information
The TMS570LC4357 device is part of the Hercules TMS570 series of high-performance automotive-grade ARM® Cortex®-R-based MCUs. Comprehensive documentation, tools, and software are available to assist in the development of ISO 26262 and IEC 61508 functional safety applications. Start evaluating today with the Hercules TMS570LC43x LaunchPad Development Kit. The TMS570LC4357 device has on-chip diagnostic features including: dual CPUs in lockstep, Built-In Self-Test (BIST) logic for CPU, the N2HET coprocessors, and for on-chip SRAMs; ECC protection on the L1 caches, L2 flash, and SRAM memories. The device also supports ECC or parity protection on peripheral memories and loopback capability on peripheral I/Os.
