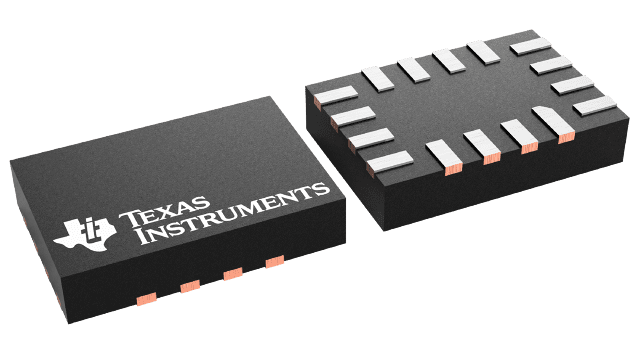

TMUX1109RSVR Texas Instruments - Yeehing Electronics
3-pA on-state leakage current, 5-V, ±2.5-V, 4:1, 2-channel precision multiplexer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.626 |
| 100 — 249 | 2.301 |
| 250 — 999 | 1.613 |
| 1,000 + | 0.91 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TMUX1109RSVR Datasheet |
More Information
The TMUX1109 is a precision complementary metal-oxide semiconductor (CMOS) multiplexer (MUX). The TMUX1109 offers differential 4:1 or dual 4:1 single-ended channels. Wide operating supply of 1.08 V to 5.5 V allows for use in a broad array of applications from medical equipment to industrial systems. The device supports bidirectional analog and digital signals on the source (Sx) and drain (D) pins ranging from GND to VDD. All logic inputs have 1.8 V logic compatible thresholds, ensuring both TTL and CMOS logic compatibility when operating in the valid supply voltage range. Fail-Safe Logic circuitry allows voltages on the control pins to be applied before the supply pin, protecting the device from potential damage.
