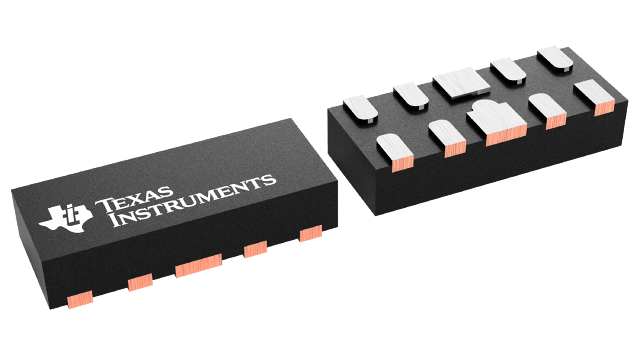

TMUX1136DQAR Texas Instruments - Yeehing Electronics
3-pA on-state leakage current, 5-V, 2:1, 2-channel precision analog switch
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.195 |
100 — 249 | 1.813 |
250 — 999 | 1.302 |
1,000 + | 0.69 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TMUX1136DQAR Datasheet |
More Information
The TMUX1136 is a complementary metal-oxide semiconductor (CMOS) single-pole double-throw (2:1) switch with two independently controlled channels. Wide operating supply of 1.08 V to 5.5 V allows for use in a broad array of applications from medical equipment to industrial systems. The device supports bidirectional analog and digital signals on the source (Sx) and drain (Dx) pins ranging from GND to VDD. All logic inputs have 1.8 V logic compatible thresholds, ensuring both TTL and CMOS logic compatibility when operating in the valid supply voltage range. Fail-Safe Logic circuitry allows voltages on the control pins to be applied before the supply pin, protecting the device from potential damage.
