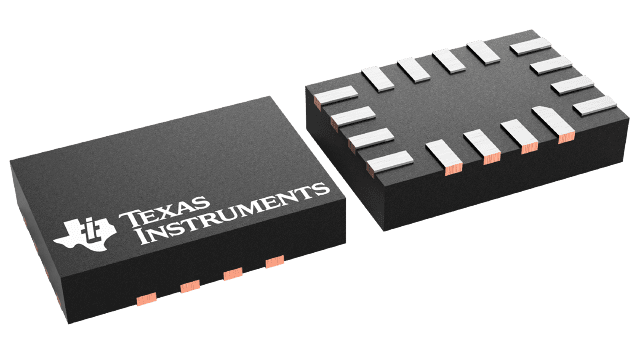

TMUX1209RSVR Texas Instruments - Yeehing Electronics

5-V, 4:1, 2-channel general-purpose multiplexer with 1.8-V input logic control

Pricing (USD)

Quantity	Unit Price
1 — 99	0.546
100 — 249	0.42
250 — 999	0.309
1,000 +	0.15

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog Switch ICs
RoHS	Y
Number of Switches	2 Switch
Configuration	2 x 4PST
On Resistance - Max	9 Ohms
Switch Voltage - Max	5.5 V
On Time - Max	20 ns
Off Time - Max	20 ns
Operating Supply Voltage	1.08 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	UQFN-16
Packaging	Reel
Series	TMUX1209
Supply Type	Single Supply
Brand	Texas Instruments
Supply Current - Max	2.7 uA
Product Type	Analog Switch ICs
Factory Pack Quantity	3000
Subcategory	Switch ICs
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.08 V

For more information, please refer to datasheet

Documents

TMUX1209RSVR Datasheet

More Information

The TMUX1208 and TMUX1209 are general purpose complementary metal-oxide semiconductor (CMOS) multiplexers (MUX). The TMUX1208 offers 8:1 single-ended channels, while the TMUX1209 offers differential 4:1 or dual 4:1 single-ended channels. Wide operating supply of 1.08 V to 5.5 V allows for use in a broad array of applications from personal electronics to building automation applications. The device supports bidirectional analog and digital signals on the source (Sx) and drain (D) pins ranging from GND to VDD.
