Texas Instruments
TMUX1308BQBR
TMUX1308BQBR
Regular price
$0.21 USD
Regular price
Sale price
$0.21 USD
Unit price
per
Couldn't load pickup availability
TMUX1308BQBR Texas Instruments - Yeehing Electronics
5-V, 8:1, 1-channel general-purpose multiplexer with 1.8-V logic control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.278 |
| 100 — 249 | 0.189 |
| 250 — 999 | 0.146 |
| 1,000 + | 0.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 125 |
| Factory Pack Quantity | 3,000 |

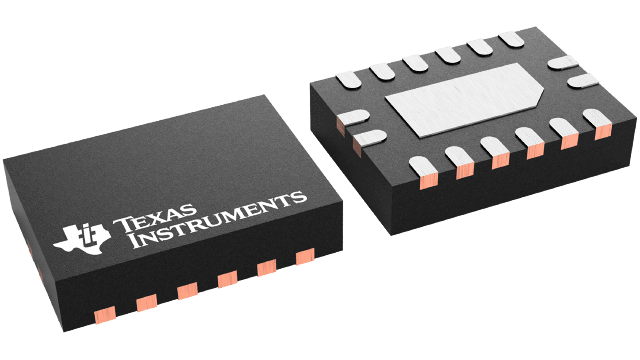

| Package | Pins | WQFN (BQB) | 16 |
For more information, please refer to datasheet
Documents
| TMUX1308BQBR Datasheet |
More Information
The TMUX1308 and TMUX1309 are general purpose complementary metal-oxide semiconductor (CMOS) multiplexers (MUX). The TMUX1308 is an 8:1, 1-channel (single-ended) mux, while the TMUX1309 is a 4:1, 2-channel (differential) mux. The devices support bidirectional analog and digital signals on the source (Sx) and drain (Dx) pins ranging from GND to VDD.
