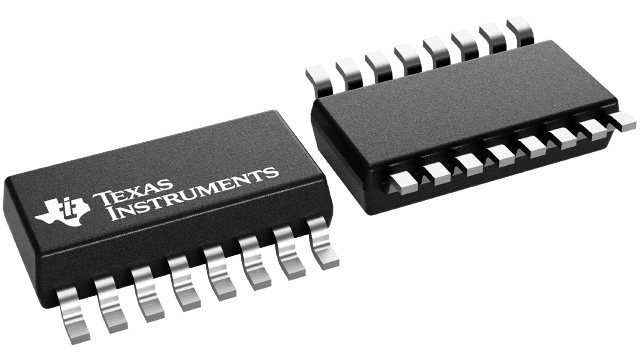

TMUX1308QDYYRQ1 Texas Instruments - Yeehing Electronics
Automotive 5-V, 8:1, 1-channel multiplexer with injection current control and 1.8V logic
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.284 |
100 — 249 | 0.193 |
250 — 999 | 0.149 |
1,000 + | 0.07 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TMUX1308QDYYRQ1 Datasheet |
More Information
The TMUX1308-Q1 and TMUX1309-Q1 are general purpose complementary metal-oxide semiconductor (CMOS) multiplexers (MUX). The TMUX1308-Q1 is an 8:1, 1-channel (single-ended) mux, while the TMUX1309-Q1 is a 4:1, 2-channel (differential) mux. The devices support bidirectional analog and digital signals on the source (Sx) and drain (Dx) pins ranging from GND to VDD.
