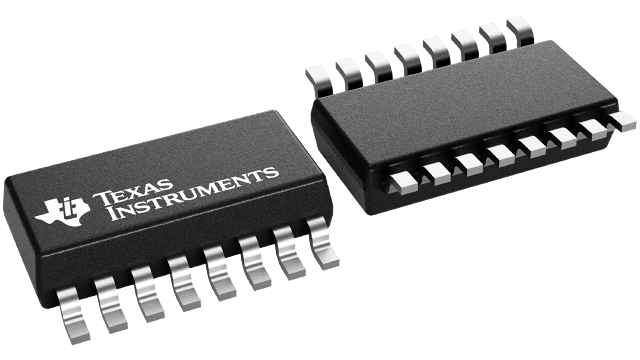

TMUX1309DYYR Texas Instruments - Yeehing Electronics
2-channel, 4:1 general-purpose analog multiplexer with 1.8-V logic control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.253 |
| 100 — 249 | 0.172 |
| 250 — 999 | 0.132 |
| 1,000 + | 0.06 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TMUX1309DYYR Datasheet |
More Information
The TMUX1308 and TMUX1309 are general purpose complementary metal-oxide semiconductor (CMOS) multiplexers (MUX). The TMUX1308 is an 8:1, 1-channel (single-ended) mux, while the TMUX1309 is a 4:1, 2-channel (differential) mux. The devices support bidirectional analog and digital signals on the source (Sx) and drain (Dx) pins ranging from GND to VDD.
