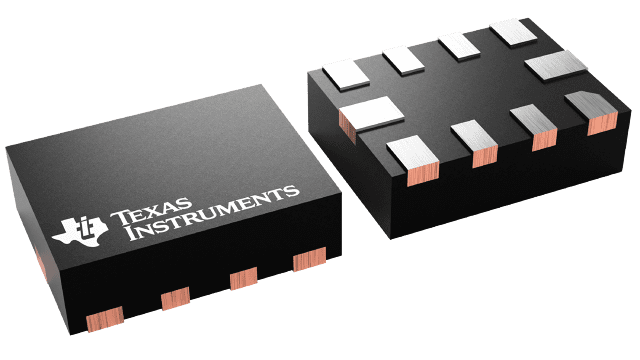

TMUX136MRSER Texas Instruments - Yeehing Electronics
1.4-pF on-state capacitance, 5-V, 2:1 (SPDT), 2-channel analog switch with powered-off protection
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.798 |
100 — 249 | 0.614 |
250 — 999 | 0.452 |
1,000 + | 0.23 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog Switch ICs |
RoHS | Y |
Number of Switches | 2 Switch |
Configuration | 2 x SPDT |
On Resistance - Max | 7.5 Ohms |
Switch Voltage - Max | 4.8 V |
On Time - Max | 100 us |
Off Time - Max | 200 ns |
Operating Supply Voltage | 2.3 V to 4.8 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | UQFN-10 |
Packaging | Reel |
Series | TMUX136 |
Supply Type | Single Supply |
Brand | Texas Instruments |
Supply Current - Max | 50 uA |
Product Type | Analog Switch ICs |
Factory Pack Quantity | 3000 |
Subcategory | Switch ICs |
Supply Voltage - Max | 4.8 V |
Supply Voltage - Min | 2.3 V |
Switch Continuous Current | 20 mA |
Unit Weight | 0.000166 oz |
For more information, please refer to datasheet
Documents
TMUX136MRSER Datasheet |
More Information
The TMUX136 device is a high performance, 6-GHz, 2-channel, 2:1 switch that will support both differential and single ended signals. The device has a wide VCC range of 2.3 V to 4.8 V and supports a power-off protection feature forcing all I/O pins to be in high-impedance mode when power is not present on the VCC pin. The select pins of TMUX136 are compatible with 1.8-V control voltage, allowing them to be directly interfaced with the General-Purpose I/O (GPIO) from low voltage processors.
