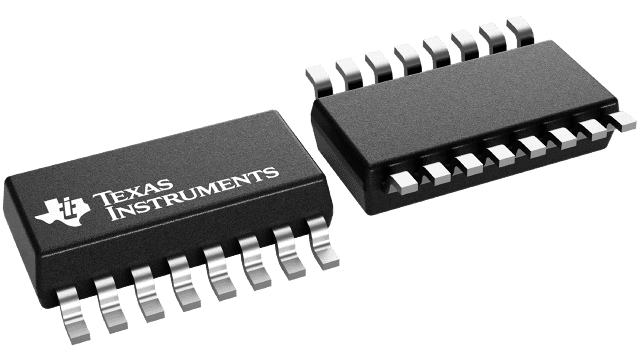

TMUX1574DYYR Texas Instruments - Yeehing Electronics
5-V, 2:1 (SPDT), 4-channel analog switch with powered-off protection & 1.8-V input logic
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.563 |
| 100 — 249 | 0.382 |
| 250 — 999 | 0.295 |
| 1,000 + | 0.14 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TMUX1574DYYR Datasheet |
More Information
The TMUX1574 is a complementary metal-oxide semiconductor (CMOS) switch. The TMUX1574 offers 2:1 SPDT switch configuration with 4-channels. Wide operating supply of 1.5 V to 5.5 V allows for use in a broad array of applications from servers and communication equipment to industrial applications. The device supports bidirectional analog and digital signals on the source (SxA, SxB) and drain (Dx) pins and can pass signals above supply up to VDD x 2, with a maximum input/output voltage of 5.5 V.
