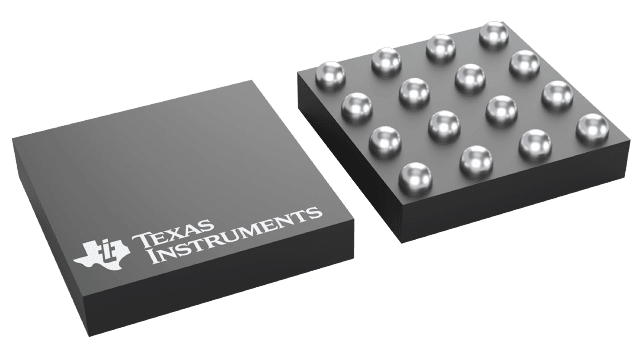

TMUX1575YCJR Texas Instruments - Yeehing Electronics
Low-capacitance, 2:1 (SPDT) 4-channel, powered-off protection switch with 1.2-V logic
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.83 |
100 — 249 | 0.638 |
250 — 999 | 0.47 |
1,000 + | 0.24 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TMUX1575YCJR Datasheet |
More Information
The TMUX1575 is a complementary metal-oxide semiconductor (CMOS) switch in a 2:1 (SPDT) configuration with 4-channels. The small size and operating supply voltage of 1.08 V to 3.6 V allows for use in a broad array of applications from servers and communication equipment to personal electronics applications. The device supports bidirectional analog and digital signals on the source (SxA, SxB) and drain (Dx) pins and can pass signals up to VDD x 2 with a maximum input/output voltage of 3.6 V.
