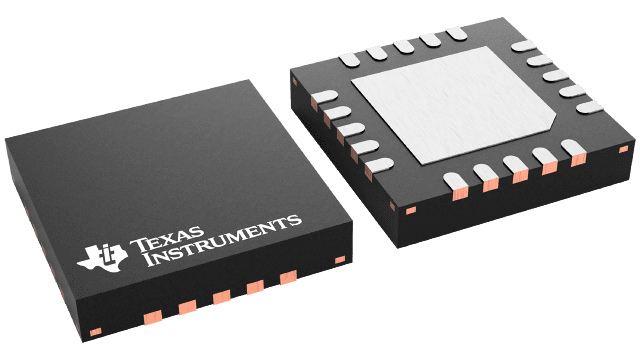

TMUX7234RRQR Texas Instruments - Yeehing Electronics
44-V, latch-up immune, 2:1, four-channel precision multiplexer with 1.8-V logic
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.71 |
100 — 249 | 3.84 |
250 — 999 | 3.018 |
1,000 + | 1.79 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TMUX7234RRQR Datasheet |
More Information
The TMUX7234 is a complementary metal-oxide semiconductor (CMOS) multiplexer with latch-up immunity. The TMUX7234 contains four independently controlled SPDT switches with an EN pin to enable or disable all four channels. The device supports single supply (4.5 V to 44 V), dual supplies (±4.5 V to ±22 V), or asymmetric supplies (such as VDD = 12 V, VSS = –5 V). The TMUX7234 supports bidirectional analog and digital signals on the source (Sx) and drain (D) pins ranging from VSS to VDD.
