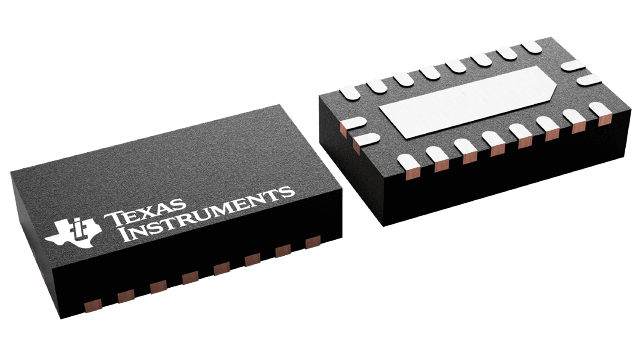

TMUXHS4212IRKST Texas Instruments - Yeehing Electronics
2-channel 16-Gbps 2:1/1:2 differential mux/demux
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.938 |
| 100 — 249 | 1.6 |
| 250 — 999 | 1.15 |
| 1,000 + | 0.61 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TMUXHS4212IRKST Datasheet |
More Information
The TMUXHS4212 is a high-speed bidirectional passive switch in mux or demux configurations. It is suited for many applications including USB Type-C™ and PCI Express. The TMUXHS4212 is a generic analog differential passive mux or demux that works for many high-speed differential interfaces with data rates up to 16 Gbps. The device can be used for higher data rates where the electrical channel has signal integrity margins. The TMUXHS4212 supports differential signaling with common mode voltage range (CMV) of up to 0 to 1.8 V and with differential amplitude up to 1800 mVpp. Adaptive CMV tracking ensures the channel through the device remains unchanged for the entire common mode voltage range.
