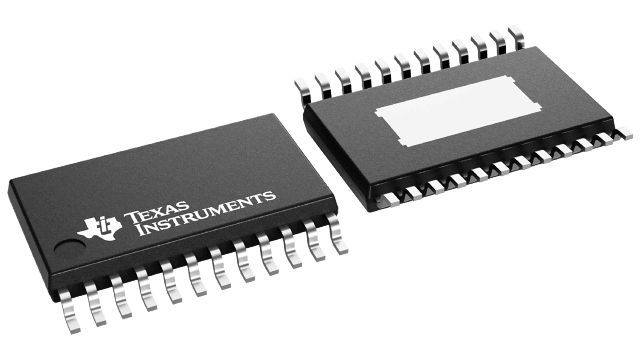

TPA0102PWP Texas Instruments - Yeehing Electronics
1.5-W, stereo, analog input Class-AB audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.141 |
| 100 — 249 | 2.752 |
| 250 — 999 | 1.93 |
| 1,000 + | 1.09 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA0102 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 1.5 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | HTSSOP-24 |
| Audio - Load Impedance | 4 Ohms |
| THD plus Noise | 0.2 % |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Headphone/Speaker |
| Height | 1.15 mm |
| Input Type | Single |
| Length | 7.8 mm |
| Output Type | 2-Channel Stereo |
| Supply Type | Single |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Supply Current - Max | 25 mA |
| Moisture Sensitive | Yes |
| Operating Supply Current | 19 mA |
| Operating Supply Voltage | 5 V |
| Output Signal Type | Differential, Single |
| Pd - Power Dissipation | 2700 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 75 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.003460 oz |
For more information, please refer to datasheet
Documents
| TPA0102PWP Datasheet |
More Information
The TPA0102 is a stereo audio power amplifier in a 24-pin TSSOP thermal package capable of delivering greater than 1.5 W of continuous RMS power per channel into 4- loads. This device functionality provides a very efficient upgrade path from the TPA4860 and TPA4861 mono amplifiers where three separate devices are required for stereo applications: two for speaker drive, plus a third for headphone drive. The TPA0102 simplifies design and frees up board space for other features. Full power distortion levels of less than 0.1% THD+N from a 5-V supply are typical. This provides significant improvement in fidelity for speech and music over the popular TPA4860/61 series. Low-voltage applications are also well served by the TPA0102 providing 600-mW per channel into 4- loads with a 3.3-V supply voltage.
