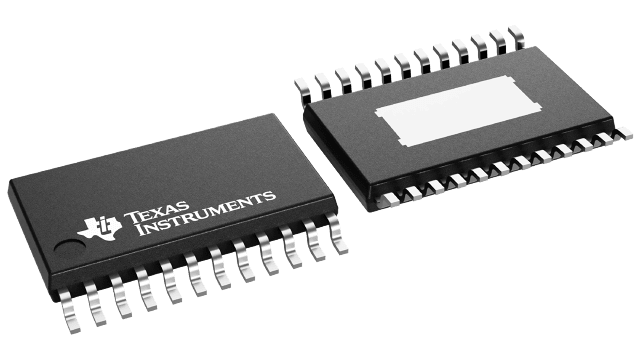

TPA0162PWP Texas Instruments - Yeehing Electronics
2.8-W, stereo, analog input Class-AB audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.027 |
| 100 — 249 | 4.098 |
| 250 — 999 | 3.221 |
| 1,000 + | 1.91 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA0162 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 2.8 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | HTSSOP-24 |
| Audio - Load Impedance | 4 Ohms |
| THD plus Noise | 0.22 % |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Headphone/Speaker |
| Height | 1.15 mm |
| Input Type | Differential |
| Length | 7.8 mm |
| Output Type | 2-Channel Stereo |
| Supply Type | Single |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Gain | 20 dB to -40 dB |
| Number of Channels | 2 Channel |
| Development Kit | TPA0162EVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 25 mA |
| Operating Supply Voltage | 5 V |
| Output Signal Type | Differential, Single |
| Pd - Power Dissipation | 2700 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 67 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.003460 oz |
For more information, please refer to datasheet
Documents
| TPA0162PWP Datasheet |
More Information
The TPA0162 is a stereo audio power amplifier in a 24-pin TSSOP thermally enhanced package capable of delivering 2.8 W of continuous RMS power per channel into 3- loads.
