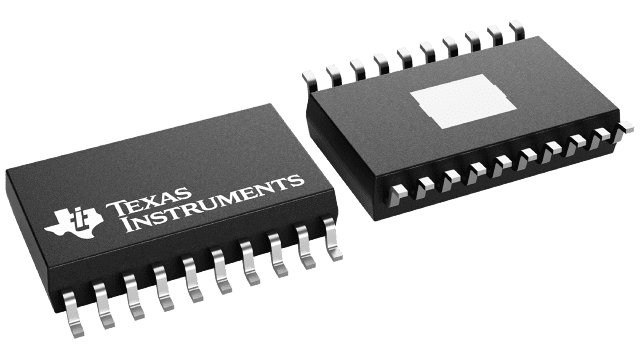

TPA1517DWP Texas Instruments - Yeehing Electronics
6-W stereo, 9.5- to 18-V supply, analog input Class-AB audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.545 |
| 100 — 249 | 3.106 |
| 250 — 999 | 2.178 |
| 1,000 + | 1.23 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA1517 |
| Product | Audio Amplifiers |
| Class | Class-AB |
| Output Power | 6 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | HSOP-20 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 0.1 % |
| Supply Voltage - Max | 18 V |
| Supply Voltage - Min | 9.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Speaker |
| Height | 2.55 mm |
| Input Type | Analog |
| Length | 12.82 mm |
| Output Current | 4 A |
| Output Type | 2-Channel Stereo |
| Supply Type | Single |
| Width | 7.52 mm |
| Brand | Texas Instruments |
| Gain | 20 dB |
| Number of Channels | 2 Channel |
| Supply Current - Max | 70 mA |
| Development Kit | TPA1517DWPEVM |
| Ib - Input Bias Current | - |
| Moisture Sensitive | Yes |
| Operating Supply Current | 45 mA |
| Operating Supply Voltage | 12 V, 15 V |
| Output Signal Type | Single |
| Pd - Power Dissipation | 2940 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 65 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Part # Aliases | HPA00892DWPR |
| Unit Weight | 0.017870 oz |
For more information, please refer to datasheet
Documents
| TPA1517DWP Datasheet |
More Information
The TPA1517 is a stereo audio power amplifier that contains two identical amplifiers capable of delivering 6 W per channel of continuous average power into a 4- load at 10% THD+N or 5 W per channel at 1% THD+N. The gain of each channel is fixed at 20 dB. The amplifier features a mute/standby function for power-sensitive applications. The amplifier is available in the PowerPAD 20-pin surface-mount thermally-enhanced package (DWP) that reduces board space and facilitates automated assembly while maintaining exceptional thermal characteristics. It is also available in the 20-pin thermally enhanced DIP package (NE).
