TPA1517DWPR Texas Instruments - Yeehing Electronics

6-W stereo, 9.5- to 18-V supply, analog input Class-AB audio amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	3.252
100 — 249	2.686
250 — 999	1.93
1,000 +	0.51

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TPA1517
Product	Audio Amplifiers
Class	Class-AB
Output Power	6 W
Mounting Style	SMD/SMT
Type	2-Channel Stereo
Package / Case	HSOP-20
Audio - Load Impedance	8 Ohms
THD plus Noise	0.1 %
Supply Voltage - Max	18 V
Supply Voltage - Min	9.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Description/Function	Speaker
Height	2.55 mm
Input Type	Analog
Length	12.82 mm
Output Current	4 A
Output Type	2-Channel Stereo
Supply Type	Single
Width	7.52 mm
Brand	Texas Instruments
Gain	20 dB
Number of Channels	2 Channel
Supply Current - Max	70 mA
Development Kit	TPA1517DWPEVM
Ib - Input Bias Current	-
Moisture Sensitive	Yes
Operating Supply Current	45 mA
Operating Supply Voltage	12 V, 15 V
Output Signal Type	Single
Pd - Power Dissipation	2940 mW
Product Type	Audio Amplifiers
PSRR - Power Supply Rejection Ratio	65 dB
Factory Pack Quantity	2000
Subcategory	Audio ICs
Part # Aliases	HPA00892DWPR
Unit Weight	0.017870 oz

For more information, please refer to datasheet

Documents

TPA1517DWPR Datasheet

More Information

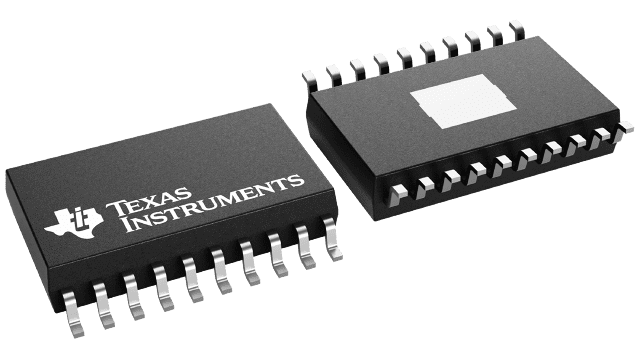

The TPA1517 is a stereo audio power amplifier that contains two identical amplifiers capable of delivering 6 W per channel of continuous average power into a 4- load at 10% THD+N or 5 W per channel at 1% THD+N. The gain of each channel is fixed at 20 dB. The amplifier features a mute/standby function for power-sensitive applications. The amplifier is available in the PowerPAD™ 20-pin surface-mount thermally-enhanced package (DWP) that reduces board space and facilitates automated assembly while maintaining exceptional thermal characteristics. It is also available in the 20-pin thermally enhanced DIP package (NE).
