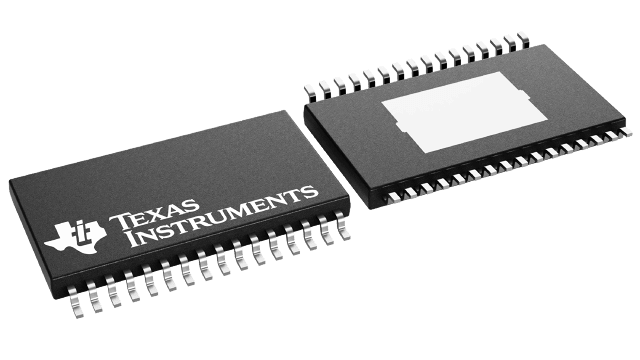

TPA2000D4DAPR Texas Instruments - Yeehing Electronics
2-W, stereo, analog input Class-D audio amplifier with 90-mW stereo headphone amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.706 |
| 100 — 249 | 3.021 |
| 250 — 999 | 2.375 |
| 1,000 + | 1.41 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA2000D4 |
| Product | Audio Subsystems |
| Class | Class-AB |
| Output Power | 2 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | HTSSOP-32 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 0.4 % |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 3.7 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Headphone/Speaker |
| Height | 1.15 mm |
| Input Type | Differential |
| Length | 11 mm |
| Supply Type | Single |
| Width | 6.2 mm |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Supply Current - Max | 12 mA |
| Development Kit | TPA2000D4EVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 9 mA |
| Operating Supply Voltage | 5 V |
| Output Signal Type | Differential |
| Pd - Power Dissipation | 5300 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 75 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.006349 oz |
For more information, please refer to datasheet
Documents
| TPA2000D4DAPR Datasheet |
More Information
The TPA2000D4 is a 2-W stereo bridge-tied-load (BTL) class-D amplifier designed to drive speakers with as low as 4- impedance. The amplifier uses TIs second-generation modulation technique, which results in improved efficiency and SNR, and also allows the device to be connected directly to the speaker without the use of the LC output filter commonly associated with class-D amplifiers (this will result in an EMI which must be shielded at the system level). These features make the device ideal for use in notebook PCs where high-efficiency is needed to extend battery run-time. For speakers powered off the USB bus, the high-efficiency allows for higher output power levels without tripping the USBs over-current circuitry.
