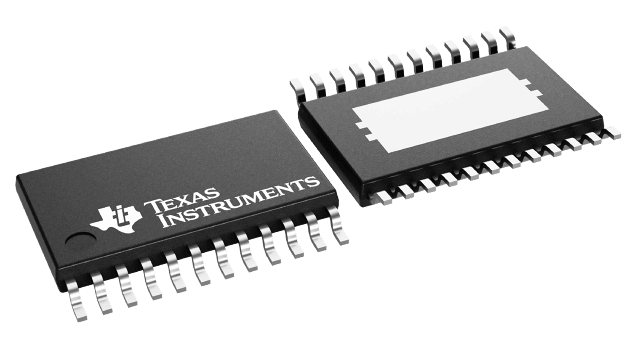

TPA2001D2PWP Texas Instruments - Yeehing Electronics

1-W, stereo, analog input Class-D audio amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	1.846
100 — 249	1.524
250 — 999	1.095
1,000 +	0.58

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TPA2001D2
Product	Audio Amplifiers
Class	Class-D
Output Power	1 W
Mounting Style	SMD/SMT
Type	2-Channel Stereo
Package / Case	HTSSOP-24
Audio - Load Impedance	8 Ohms
THD plus Noise	0.2 %
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Description/Function	Speaker
Height	1.15 mm
Input Type	Differential
Length	7.8 mm
Output Type	2-Channel Stereo
Supply Type	Single
Width	4.4 mm
Brand	Texas Instruments
Number of Channels	2 Channel
Supply Current - Max	10 mA
Development Kit	TPA2001D2EVM
Moisture Sensitive	Yes
Operating Supply Current	8 mA
Operating Supply Voltage	5 V
Output Signal Type	Differential
Pd - Power Dissipation	2700 mW
Product Type	Audio Amplifiers
PSRR - Power Supply Rejection Ratio	77 dB
Factory Pack Quantity	2000
Subcategory	Audio ICs
Unit Weight	0.003460 oz

For more information, please refer to datasheet

Documents

TPA2001D2PWP Datasheet

More Information

The TPA2001D2 is the third generation 5-V class-D amplifier from Texas Instruments. Improvements to previous generation devices include: lower supply current, lower noise floor, better efficiency, four different gain settings, smaller packaging, and fewer external components. The most significant advancement with this device is its modulation scheme that allows the amplifier to operate without the output filter. Eliminating the output filter saves the user approximately 30% in system cost and 75% in PCB area.
