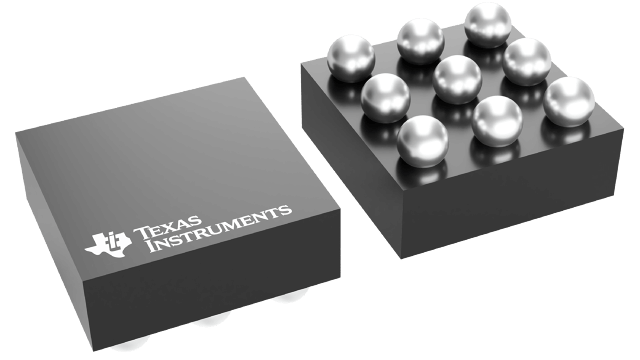

TPA2011D1YFFT Texas Instruments - Yeehing Electronics

3.2-W, mono, analog input Class-D audio amplifier with auto-recovering short-circuit protection

Pricing (USD)

Quantity	Unit Price
1 — 99	0.704
100 — 249	0.542
250 — 999	0.399
1,000 +	0.20

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TPA2011D1
Product	Audio Amplifiers
Class	Class-D
Output Power	3.2 W
Mounting Style	SMD/SMT
Type	1-Channel Mono
Package / Case	DSBGA-9
Audio - Load Impedance	4 Ohms
THD plus Noise	10 %
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Brand	Texas Instruments
Number of Channels	1 Channel
CMRR - Common Mode Rejection Ratio	79 dB
Development Kit	TPA2011D1YFFEVM
Operating Supply Current	1.5 mA
Operating Supply Voltage	2.5 V to 5.5 V
Pd - Power Dissipation	525 mW
Product Type	Audio Amplifiers
PSRR - Power Supply Rejection Ratio	86 dB
Factory Pack Quantity	250
Subcategory	Audio ICs
Unit Weight	0.000423 oz

For more information, please refer to datasheet

Documents

TPA2011D1YFFT Datasheet

More Information

The TPA2011D1 is a 3.2-W high efficiency filter-free class-D audio power amplifier (class-D amp) in a 1.21 mm × 1.16 mm wafer chip scale package (DSBGA) that requires only three external components.
