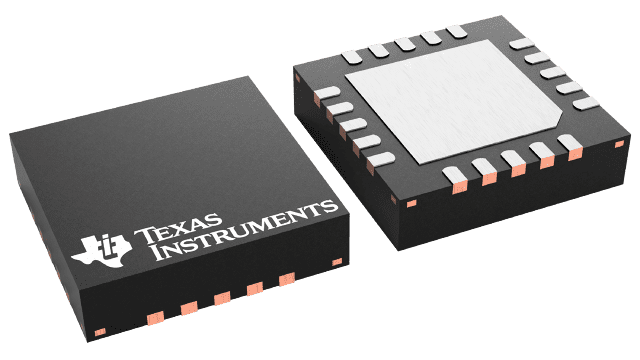

TPA2013D1RGPR Texas Instruments - Yeehing Electronics

2.7-W, mono, analog input Class-D audio amp with integrated boost converter & selectable gain

Pricing (USD)

Quantity	Unit Price
1 — 99	1.145
100 — 249	0.945
250 — 999	0.679
1,000 +	0.36

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TPA2013D1
Product	Audio Amplifiers
Class	Class-D
Output Power	2.7 W
Mounting Style	SMD/SMT
Type	1-Channel Mono
Package / Case	QFN-20
Audio - Load Impedance	4 Ohms
THD plus Noise	10 %
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.8 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Description/Function	Speaker
Height	0.93 mm
Input Type	Differential
Length	4 mm
Output Current	1.7 A
Output Type	1-Channel Mono
Supply Type	Dual
Width	4 mm
Brand	Texas Instruments
Gain	20 dB
Number of Channels	1 Channel
CMRR - Common Mode Rejection Ratio	75 dB
Development Kit	TPA2013D1EVM
Dual Supply Voltage	3 V, 5 V
Ib - Input Bias Current	-
Maximum Dual Supply Voltage	5.5 V
Minimum Dual Supply Voltage	1.8 V, 3 V
Moisture Sensitive	Yes
Operating Supply Current	4.3 mA
Operating Supply Voltage	1.8 V to 5.5 V
Output Signal Type	Differential
Pd - Power Dissipation	2500 mW
Product Type	Audio Amplifiers
PSRR - Power Supply Rejection Ratio	95 dB
Factory Pack Quantity	3000
Subcategory	Audio ICs
Unit Weight	0.001630 oz

For more information, please refer to datasheet

Documents

TPA2013D1RGPR Datasheet

More Information

The TPA2013D1 device is a high efficiency Class-D audio power amplifier with an integrated boost converter. It drives up to 2.7 W (10% THD+N) into a 4-Ω speaker. With 85% typical efficiency, the TPA2013D1 helps extend battery life when playing audio.
