Texas Instruments

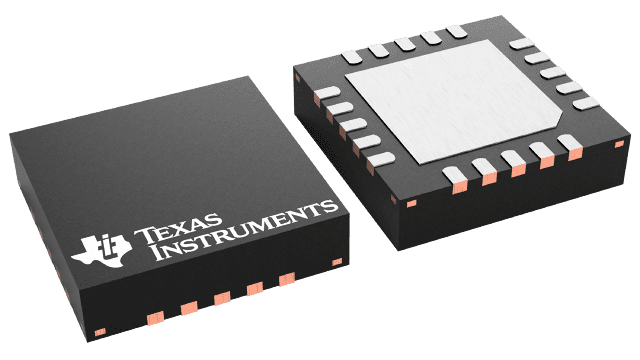

TPA2014D1RGPT
TPA2014D1RGPT
Regular price
$0.61 USD
Regular price
Sale price
$0.61 USD
Unit price
per
Couldn't load pickup availability
TPA2014D1RGPT Texas Instruments - Yeehing Electronics
1.5-W, mono, analog input Class-D audio amplifier with integrated boost & selectable gain
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.942 |
| 100 — 249 | 1.604 |
| 250 — 999 | 1.152 |
| 1,000 + | 0.61 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA2014D1 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 1.5 W |
| Mounting Style | SMD/SMT |
| Type | 1-Channel Mono |
| Package / Case | QFN-20 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 10 % |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Speaker |
| Height | 0.93 mm |
| Input Type | Differential |
| Length | 4 mm |
| Output Type | 1-Channel Mono |
| Supply Type | Dual |
| Width | 4 mm |
| Brand | Texas Instruments |
| Gain | 20 dB |
| Number of Channels | 1 Channel |
| CMRR - Common Mode Rejection Ratio | 75 dB |
| Development Kit | TPA2014D1EVM |
| Dual Supply Voltage | 3 V, 5 V |
| Maximum Dual Supply Voltage | 5.5 V |
| Minimum Dual Supply Voltage | 2.5 V, 3 V |
| Moisture Sensitive | Yes |
| Output Signal Type | Differential |
| Pd - Power Dissipation | 2500 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 91 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Audio ICs |
| Unit Weight | 0.001630 oz |
For more information, please refer to datasheet
Documents
| TPA2014D1RGPT Datasheet |
More Information
The TPA2014D1 is a high efficiency Class-D audio power amplifier with an integrated boost converter. It drives up to 1.5 W (10% THD+N) into a 8 Ω speaker from a 3.6 V supply. With 85% typical efficiency, the TPA2014D1 helps extend battery life when playing audio.
