Texas Instruments
TPA2038D1YFFR
TPA2038D1YFFR
Regular price
$0.69 USD
Regular price
Sale price
$0.69 USD
Unit price
per
Couldn't load pickup availability

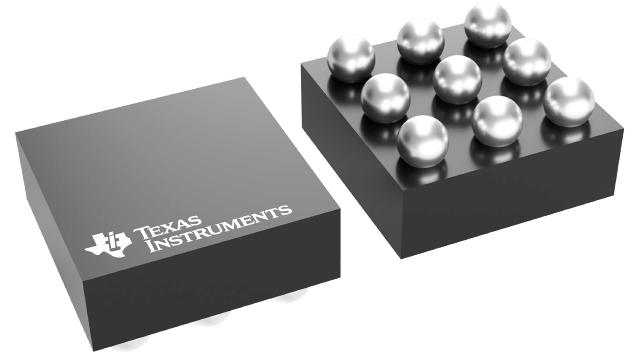

TPA2038D1YFFR Texas Instruments - Yeehing Electronics
3.2-W, mono, analog input Class-D audio amplifier with integrated DAC & selectable gain
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.739 |
| 100 — 249 | 0.568 |
| 250 — 999 | 0.418 |
| 1,000 + | 0.69 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA2038D1 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 3.2 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | DSBGA-9 |
| Audio - Load Impedance | 4 Ohms |
| THD plus Noise | 0.12 % |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Supply Type | Single |
| Brand | Texas Instruments |
| Gain | 12 dB |
| Number of Channels | 1 Channel |
| CMRR - Common Mode Rejection Ratio | 77 dB |
| Development Kit | TPA2038D1YFFEVM |
| Operating Supply Current | 1.8 mA |
| Operating Supply Voltage | 2.5 V to 5.5 V |
| Pd - Power Dissipation | 525 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 86 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Audio ICs |
| Vos - Input Offset Voltage | 1 mV |
| Unit Weight | 0.000060 oz |
For more information, please refer to datasheet
Documents
| TPA2038D1YFFR Datasheet |
More Information
The TPA2038D1 is a 3.2 W into 4-ohm (10% THD) high efficiency filter-free class-D audio power amplifier. The GAIN pin sets gain to either 6 dB or 12 dB.
