Texas Instruments
TPA2039D1YFFR
TPA2039D1YFFR
Regular price
$0.21 USD
Regular price
Sale price
$0.21 USD
Unit price
per
Couldn't load pickup availability
TPA2039D1YFFR Texas Instruments - Yeehing Electronics
3.2-W, mono, analog input Class-D audio amplifier with fixed 12 dB gain & short-circuit protection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.739 |
| 100 — 249 | 0.568 |
| 250 — 999 | 0.418 |
| 1,000 + | 0.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA2039D1 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 3.2 W |
| Mounting Style | SMD/SMT |
| Type | Mono |
| Package / Case | DSBGA-9 |
| Audio - Load Impedance | 4 Ohms |
| THD plus Noise | 0.32 % |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Supply Type | Single |
| Brand | Texas Instruments |
| Number of Channels | 1 Channel |
| CMRR - Common Mode Rejection Ratio | 77 dB |
| Development Kit | TPA2039D1YFFEVM |
| Operating Supply Current | 1.8 mA |
| Operating Supply Voltage | 2.5 V to 5.5 V |
| Pd - Power Dissipation | 525 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 86 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.000063 oz |
For more information, please refer to datasheet
Documents
| TPA2039D1YFFR Datasheet |
More Information

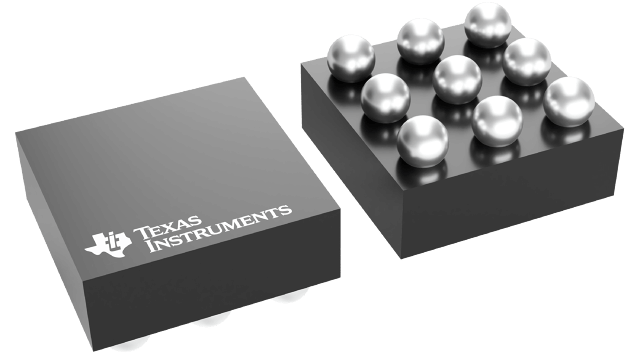

The TPA2039D1 is a 3.2 W high efficiency filter-free class-D audio power amplifier (class-D amp) with 12 dB of fixed gain in a tiny 1.21 mm × 1.16 mm wafer chip scale package (WCSP). The device requires only one external component.
