Texas Instruments
TPA2054D4AYZKR
TPA2054D4AYZKR
Regular price
$0.74 USD
Regular price
Sale price
$0.74 USD
Unit price
per
Couldn't load pickup availability
TPA2054D4AYZKR Texas Instruments - Yeehing Electronics
1.4-W, stereo, analog input Class-D audio amp with 145-mW headphone amp, 3:1 MUX & power on reset
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.131 |
| 100 — 249 | 1.867 |
| 250 — 999 | 1.309 |
| 1,000 + | 0.74 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA2054D4A |
| Product | Audio Subsystems |
| Output Power | 145 W |
| Mounting Style | SMD/SMT |

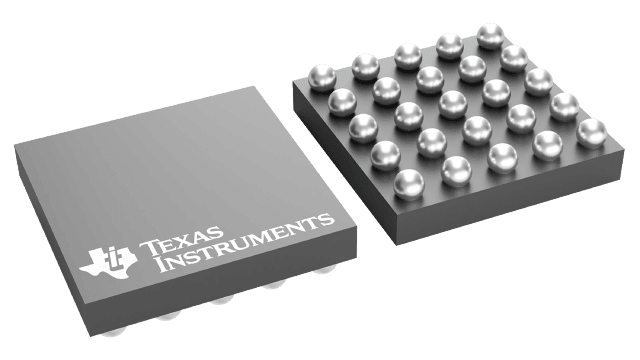

| Package / Case | DSBGA-25 |
| Audio - Load Impedance | 4 Ohms |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Output Type | Ground Centered Headphone |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Operating Supply Voltage | 2.5 V to 5.5 V |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 77.7 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Audio ICs |
| Vos - Input Offset Voltage | 5 mV |
| Unit Weight | 0.000279 oz |
For more information, please refer to datasheet
Documents
| TPA2054D4AYZKR Datasheet |
More Information
The TPA2054D4A features a stereo Class-D power amplifier along with a stereo DirectPath™ headphone amplifier. The TPA2054D4A has a mono differential input and two stereo single-ended (SE) inputs that can be configured as one stereo differential input. Both input channels have a 32-step volume control and the DirectPath headphone amplifier has a 4-level gain control for coarse volume adjustment. All amplifiers have output short-circuit and thermal- overload protection.
