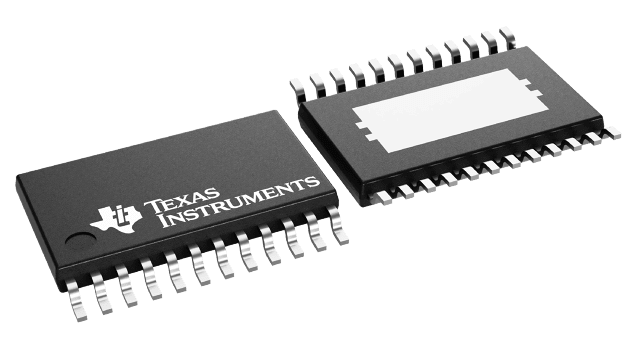

TPA3001D1PWP Texas Instruments - Yeehing Electronics
20-W mono, 8- to 18-V supply, analog input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.685 |
| 100 — 249 | 7.08 |
| 250 — 999 | 5.565 |
| 1,000 + | 3.30 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA3001D1 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 20 W |
| Mounting Style | SMD/SMT |
| Type | 1-Channel Mono |
| Package / Case | HTSSOP-24 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 0.3 % |
| Supply Voltage - Max | 18 V |
| Supply Voltage - Min | 8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Speaker |
| Height | 1.15 mm |
| Input Type | Analog |
| Length | 7.8 mm |
| Output Type | 1-Channel Mono |
| Supply Type | Single |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Gain | 36 dB |
| Number of Channels | 1 Channel |
| Supply Current - Max | 15 mA |
| Development Kit | TPA3001D1EVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 8 mA |
| Operating Supply Voltage | 9 V, 12 V, 15 V |
| Output Signal Type | Differential |
| Pd - Power Dissipation | 4160 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 73 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.003460 oz |
For more information, please refer to datasheet
Documents
| TPA3001D1PWP Datasheet |
More Information
The TPA3001D1 (sometimes referred to as TPA3001) is a 20-W monaural bridge-tied load (BTL) class-D audio power amplifier (class-D amp) with high efficiency, eliminating the need for heat sinks. The TPA3001D1 can drive 4- or 8- speakers with only a ferrite bead filter required to reduce EMI.
