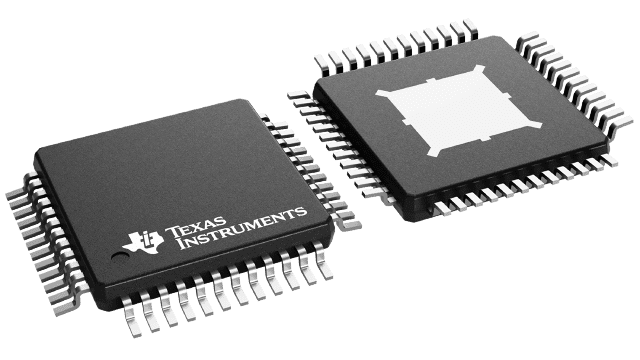

TPA3004D2PHPR Texas Instruments - Yeehing Electronics
12-W stereo, 8.5- to 18-V supply, analog input Class-D audio amplifier w/ volume control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.681 |
| 100 — 249 | 5.447 |
| 250 — 999 | 4.281 |
| 1,000 + | 2.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA3004D2 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 12 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | HTQFP-48 |
| Audio - Load Impedance | 32 Ohms |
| THD plus Noise | 0.025 % |
| Supply Voltage - Max | 18 V |
| Supply Voltage - Min | 8.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Speaker |
| Height | 1 mm |
| Input Type | Analog |
| Length | 7 mm |
| Output Type | 2-Channel Stereo |
| Supply Type | Single |
| Width | 7 mm |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Supply Current - Max | 28.5 mA |
| Development Kit | TPA3004D2EVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 16 mA |
| Operating Supply Voltage | 9 V, 12 V, 15 V |
| Output Signal Type | Single |
| Pd - Power Dissipation | 4300 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 80 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.004744 oz |
For more information, please refer to datasheet
Documents
| TPA3004D2PHPR Datasheet |
More Information
The TPA3004D2 is a 12-W (per channel) efficient, Class-D audio amplifier for driving bridged-tied stereo speakers. The TPA3004D2 can drive stereo speakers as low as 4 . The high efficiency of the TPA3004D2 eliminates the need for external heatsinks when playing music.
