TPA3100D2PHPR Texas Instruments - Yeehing Electronics

20-W stereo, 10- to 26-V supply, analog input Class-D audio amplifier

Pricing (USD)

Quantity	Unit Price
1 — 99	5.965
100 — 249	4.863
250 — 999	3.822
1,000 +	2.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TPA3100D2
Product	Audio Amplifiers
Class	Class-D
Output Power	21.8 W
Mounting Style	SMD/SMT
Type	2-Channel Stereo

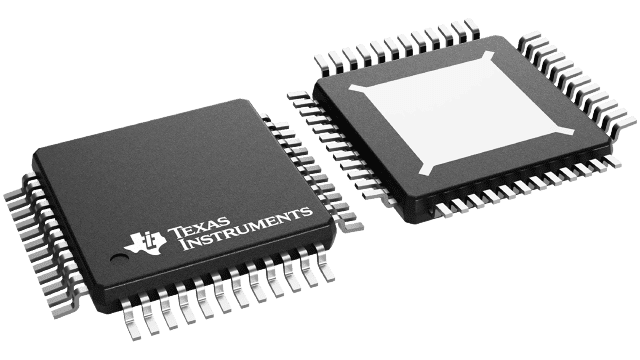

Package / Case	HTQFP-48
Audio - Load Impedance	8 Ohms
THD plus Noise	0.11 %
Supply Voltage - Max	26 V
Supply Voltage - Min	10 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Description/Function	Speaker
Height	1 mm
Input Type	Analog
Length	7 mm
Output Type	2-Channel Stereo
Supply Type	Single
Width	7 mm
Brand	Texas Instruments
Gain	36 dB
Number of Channels	2 Channel
Development Kit	TPA3100D2EVM
Dual Supply Voltage	12 V, 15 V, 18 V, 24 V
Maximum Dual Supply Voltage	26 V
Minimum Dual Supply Voltage	10 V
Moisture Sensitive	Yes
Operating Supply Current	18 mA
Operating Supply Voltage	12 V, 15 V, 18 V, 24 V
Output Signal Type	Differential
Pd - Power Dissipation	5000 mW
Product Type	Audio Amplifiers
PSRR - Power Supply Rejection Ratio	70 dB
Factory Pack Quantity	1000
Subcategory	Audio ICs
Part # Aliases	HPA00297PHPR
Unit Weight	0.004744 oz

For more information, please refer to datasheet

Documents

TPA3100D2PHPR Datasheet

More Information

The TPA3100D2 is a 20-W (per channel) efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. The TPA3100D2 can drive stereo speakers as low as 4 . The high efficiency of the TPA3100D2, 92%, eliminates the need for an external heat sink when playing music.
