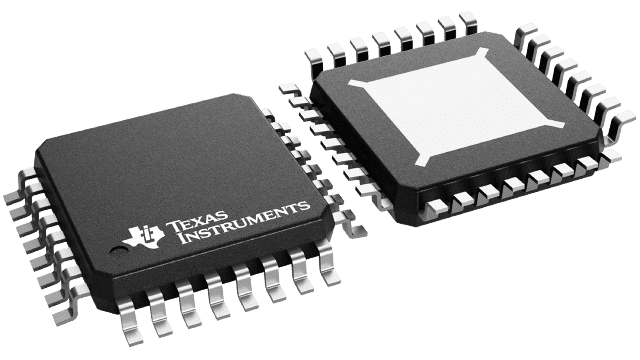

TPA3106D1VFP Texas Instruments - Yeehing Electronics
40-W mono, 10- to 26-V supply, analog input Class-D audio amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 5.956 |
100 — 249 | 4.856 |
250 — 999 | 3.816 |
1,000 + | 2.27 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Audio Amplifiers |
RoHS | Y |
Series | TPA3106D1 |
Product | Audio Amplifiers |
Class | Class-D |
Output Power | 40 W |
Mounting Style | SMD/SMT |
Type | 1-Channel Mono |
Package / Case | HLQFP-32 |
Audio - Load Impedance | 8 Ohms |
THD plus Noise | 0.2 % |
Supply Voltage - Max | 26 V |
Supply Voltage - Min | 10 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Description/Function | Speaker |
Height | 1.4 mm |
Input Type | Analog |
Length | 7 mm |
Output Type | 1-Channel Mono |
Supply Type | Single |
Width | 7 mm |
Brand | Texas Instruments |
Gain | 36 dB |
Number of Channels | 1 Channel |
Development Kit | TPA3106D1EVM |
Moisture Sensitive | Yes |
Operating Supply Current | 10 mA |
Operating Supply Voltage | 12 V, 15 V, 18 V, 24 V |
Output Signal Type | Differential |
Pd - Power Dissipation | 3570 mW |
Product Type | Audio Amplifiers |
PSRR - Power Supply Rejection Ratio | 70 dB |
Factory Pack Quantity | 1000 |
Subcategory | Audio ICs |
Unit Weight | 0.006300 oz |
For more information, please refer to datasheet
Documents
TPA3106D1VFP Datasheet |
More Information
The TPA3106D1 is a 40-W efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. The TPA3106D1 can drive stereo speakers as low as 4. The high efficiency, ~92%, of the TPA3106D1 eliminates the need for an external heat sink when playing music.
