Texas Instruments

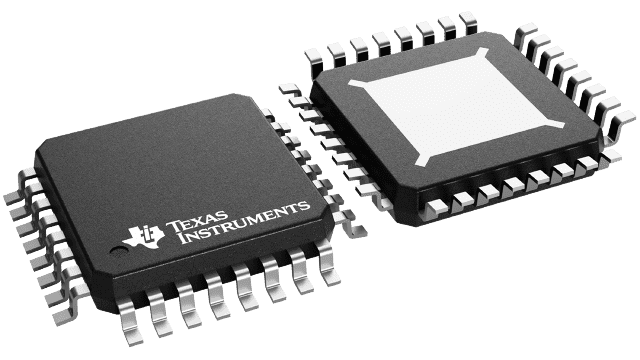

TPA3106D1VFPR
TPA3106D1VFPR
Regular price
$2.40 USD
Regular price
Sale price
$2.40 USD
Unit price
per
Couldn't load pickup availability
TPA3106D1VFPR Texas Instruments - Yeehing Electronics
40-W mono, 10- to 26-V supply, analog input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.04 |
| 100 — 249 | 4.109 |
| 250 — 999 | 3.229 |
| 1,000 + | 2.40 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA3106D1 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 40 W |
| Mounting Style | SMD/SMT |
| Type | 1-Channel Mono |
| Package / Case | HLQFP-32 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 0.2 % |
| Supply Voltage - Max | 26 V |
| Supply Voltage - Min | 10 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Speaker |
| Height | 1.4 mm |
| Input Type | Analog |
| Length | 7 mm |
| Output Type | 1-Channel Mono |
| Supply Type | Single |
| Width | 7 mm |
| Brand | Texas Instruments |
| Gain | 36 dB |
| Number of Channels | 1 Channel |
| Development Kit | TPA3106D1EVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 10 mA |
| Operating Supply Voltage | 12 V, 15 V, 18 V, 24 V |
| Output Signal Type | Differential |
| Pd - Power Dissipation | 3570 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 70 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.006300 oz |
For more information, please refer to datasheet
Documents
| TPA3106D1VFPR Datasheet |
More Information
The TPA3106D1 is a 40-W efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. The TPA3106D1 can drive stereo speakers as low as 4. The high efficiency, ~92%, of the TPA3106D1 eliminates the need for an external heat sink when playing music.
