Texas Instruments
TPA3107D2PAPR
TPA3107D2PAPR
Regular price
$2.36 USD
Regular price
Sale price
$2.36 USD
Unit price
per
Couldn't load pickup availability

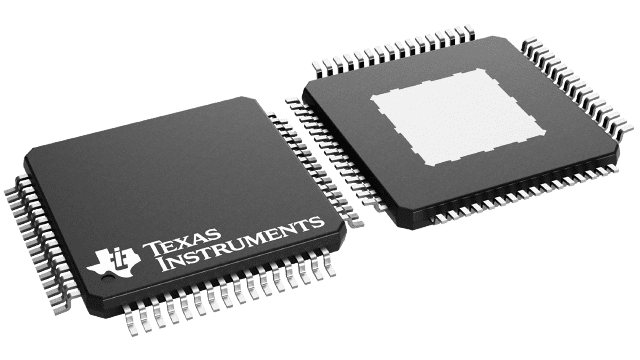

TPA3107D2PAPR Texas Instruments - Yeehing Electronics
15-W stereo, 10- to 26-V supply, analog input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.199 |
| 100 — 249 | 5.054 |
| 250 — 999 | 3.972 |
| 1,000 + | 2.36 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA3107D2 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 15 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | HTQFP-64 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 0.08 % |
| Supply Voltage - Max | 26 V |
| Supply Voltage - Min | 10 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Speaker |
| Height | 1 mm |
| Input Type | Differential |
| Length | 10 mm |
| Output Type | 2-Channel Stereo |
| Supply Type | Single |
| Width | 10 mm |
| Brand | Texas Instruments |
| Gain | 36 dB |
| Number of Channels | 2 Channel |
| Development Kit | TPA3107D2EVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 22 mA |
| Operating Supply Voltage | 12 V, 15 V, 24 V |
| Output Signal Type | Differential |
| Pd - Power Dissipation | 5430 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 70 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.009108 oz |
For more information, please refer to datasheet
Documents
| TPA3107D2PAPR Datasheet |
More Information
The TPA3107D2 is a 15-W (per channel) efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. The TPA3107D2 can drive stereo speakers as low as 6 . The high efficiency of the TPA3107D2, 87%, eliminates the need for an external heat sink when playing music.
