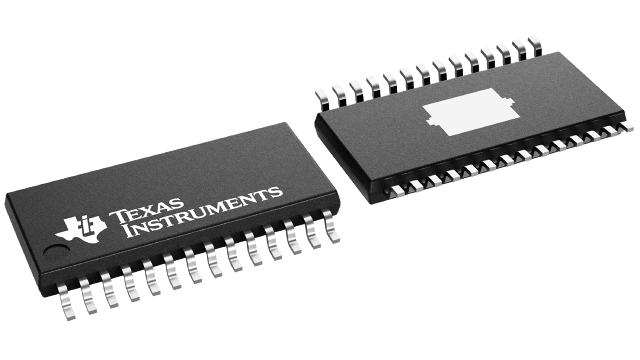

TPA3112D1QPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive, 25-W, 1-ch, 8- to 26-V analog in Class-D audio amplifier w/ SpeakerGuard™
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.204 |
100 — 249 | 1.931 |
250 — 999 | 1.354 |
1,000 + | 0.76 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Audio Amplifiers |
RoHS | Y |
Series | TPA3112D1-Q1 |
Product | Audio Amplifiers |
Mounting Style | SMD/SMT |
Package / Case | HTSSOP-28 |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Qualification | AEC-Q100 |
Packaging | Reel |
Input Type | Analog |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Product Type | Audio Amplifiers |
PSRR - Power Supply Rejection Ratio | 70 dB |
Factory Pack Quantity | 2000 |
Subcategory | Audio ICs |
Unit Weight | 0.004233 oz |
For more information, please refer to datasheet
Documents
TPA3112D1QPWPRQ1 Datasheet |
More Information
The TPA3112D1-Q1 is a 25-W efficient, Class-D audio power amplifier for driving a bridge tied speaker. Advanced EMI Suppression Technology enables the use of inexpensive ferrite bead filters at the outputs while meeting EMC requirements. SpeakerGuard™ protection circuitry system includes an adjustable power limiter and a DC detection circuit. The adjustable power limiter allows the user to set a virtual voltage rail lower than the chip supply to limit the amount of current through the speaker. The DC detect circuit measures the frequency and amplitude of the PWM signal and shuts off the output stage if the input capacitors are damaged or shorts exist on the inputs.
