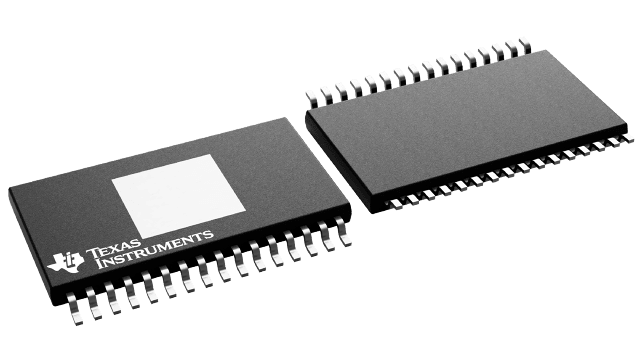

TPA3116D2DAD


YeeHing #: Y002-TPA3116D2DAD
Inventory: 6600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPA3116D2DAD Texas Instruments - Yeehing Electronics

50-W stereo, 100-W mono, 4.5- to 26-V supply, analog input Class-D audio amplifier w/ SpeakerGuard™

Pricing (USD)

Quantity Unit Price
1 — 99 2.618
100 — 249 2.294
250 — 999 1.608
1,000 + 0.91

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Audio Amplifiers
RoHS Y
Series TPA3116D2
Product Audio Amplifiers
Class Class-D
Output Power 50 W
Mounting Style SMD/SMT
Type Stereo
Package / Case HTSSOP-32
THD plus Noise 0.1 %
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Input Type Analog
Brand Texas Instruments
Number of Channels 2 Channel
Development Kit TPA3116D2EVM
Moisture Sensitive Yes
Product Type Audio Amplifiers
PSRR - Power Supply Rejection Ratio 70 dB
Factory Pack Quantity 2000
Subcategory Audio ICs
Unit Weight 0.006388 oz

For more information, please refer to datasheet

Documents

TPA3116D2DAD Datasheet

More Information

The TPA31xxD2 series are stereo efficient, digital amplifier power stage for driving speakers up to 100 W / 2 Ω in mono. The high efficiency of the TPA3130D2 allows it to do 2 × 15 W without external heat sink on a single layer PCB. The TPA3118D2 can even run 2 × 30 W / 8 Ω without heat sink on a dual layer PCB. If even higher power is needed the TPA3116D2 does 2 × 50 W / 4 Ω with a small heat-sink attached to its top side PowerPAD. All three devices share the same footprint enabling a single PCB to be used across different power levels.
