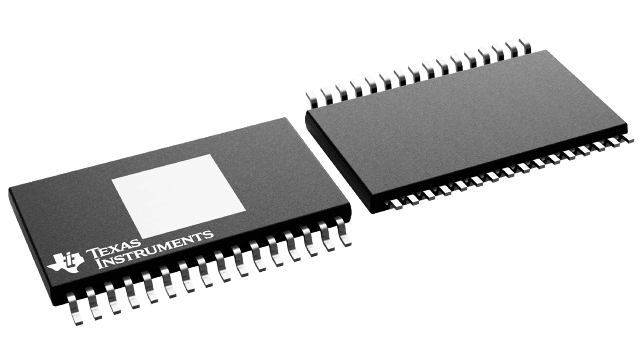

TPA3126D2DADR Texas Instruments - Yeehing Electronics
50-W stereo, 100-W mono, 4.5- to 26-V, analog input Class-D audio amplifier w/ low idle current
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.341 |
100 — 249 | 2.051 |
250 — 999 | 1.438 |
1,000 + | 0.81 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Audio Amplifiers |
RoHS | Y |
Series | TPA3126D2 |
Product | Audio Amplifiers |
Class | Class-D |
Output Power | 50 W |
Mounting Style | SMD/SMT |
Type | 2 Channel Stereo |
Package / Case | HTSSOP-32 |
Audio - Load Impedance | 2 Ohms, 4 Ohms |
THD plus Noise | 0.1 % |
Supply Voltage - Max | 26 V |
Supply Voltage - Min | 4.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Output Type | 2 Channel Stereo |
Brand | Texas Instruments |
Gain | 20 dB, 26 dB, 32 dB, 36 dB |
Number of Channels | 2 Channel |
Shutdown | Shutdown |
Development Kit | TPA3126D2EVM |
Moisture Sensitive | Yes |
Operating Supply Current | 23 mA |
Product Type | Audio Amplifiers |
PSRR - Power Supply Rejection Ratio | 70 dB |
Factory Pack Quantity | 2000 |
Subcategory | Audio ICs |
Unit Weight | 0.007397 oz |
For more information, please refer to datasheet
Documents
TPA3126D2DADR Datasheet |
More Information
The TPA3126D2 is a 50-W, stereo, low-idle-current Class-D amplifier in a thermally enhanced package. The TPA3126D2 includes TIs proprietary hybrid modulation scheme, which dynamically reduces idle current at low power levels to extend the battery life of portable audio systems, like bluetooth speakers.
