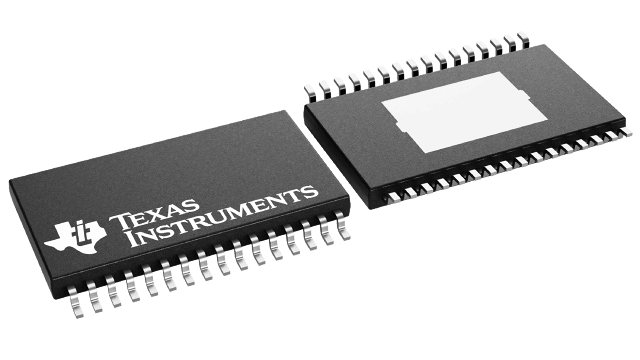

TPA3130D2DAP


YeeHing #: Y002-TPA3130D2DAP
Inventory: 7800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPA3130D2DAP Texas Instruments - Yeehing Electronics

15-W stereo, 30-W mono, 4.5- to 26-V supply, analog input Class-D audio amplifier w/ filter free

Pricing (USD)

Quantity Unit Price
1 — 99 1.899
100 — 249 1.664
250 — 999 1.167
1,000 + 0.66

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Audio Amplifiers
RoHS Y
Series TPA3130D2
Product Audio Amplifiers
Class Class-D
Output Power 15 W
Mounting Style SMD/SMT
Type Stereo
Package / Case HTSSOP-32
THD plus Noise 0.1 %
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Input Type Analog
Brand Texas Instruments
Number of Channels 2 Channel
Development Kit TPA3130D2EVM
Moisture Sensitive Yes
Product Type Audio Amplifiers
PSRR - Power Supply Rejection Ratio 70 dB
Factory Pack Quantity 2000
Subcategory Audio ICs
Unit Weight 0.006388 oz

For more information, please refer to datasheet

Documents

TPA3130D2DAP Datasheet

More Information

The TPA31xxD2 series are stereo efficient, digital amplifier power stage for driving speakers up to 100 W / 2 Ω in mono. The high efficiency of the TPA3130D2 allows it to do 2 × 15 W without external heat sink on a single layer PCB. The TPA3118D2 can even run 2 × 30 W / 8 Ω without heat sink on a dual layer PCB. If even higher power is needed the TPA3116D2 does 2 × 50 W / 4 Ω with a small heat-sink attached to its top side PowerPAD. All three devices share the same footprint enabling a single PCB to be used across different power levels.
