Texas Instruments
TPA3244DDWR
TPA3244DDWR
Couldn't load pickup availability

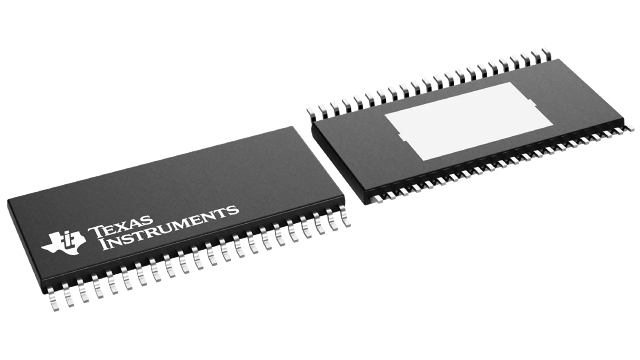

TPA3244DDWR Texas Instruments - Yeehing Electronics
60-W stereo, 120-W mono, 12- to 31.5-V supply, analog input Class-D audio amplifier, pad-down
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.068 |
| 100 — 249 | 3.317 |
| 250 — 999 | 2.607 |
| 1,000 + | 1.23 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA3244 |
| Product | Audio Amplifiers |
| Class | Class-D |
| Output Power | 110 W |
| Mounting Style | SMD/SMT |
| Type | Stereo |
| Package / Case | HTSSOP-44 |
| Audio - Load Impedance | 4 Ohms |
| THD plus Noise | 0.005 % |
| Supply Voltage - Max | 30 V |
| Supply Voltage - Min | 12 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Input Type | Analog |
| Supply Type | Single |
| Brand | Texas Instruments |
| Number of Channels | 4 Channel |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Operating Supply Current | 40 mA |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 60 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.011912 oz |
For more information, please refer to datasheet
Documents
| TPA3244DDWR Datasheet |
More Information
The TPA3244 device is a high performance Class-D power amplifier that enables true premium sound quality with Class-D efficiency. It features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath™ Ultra-HD). This technology allows ultra low distortion across the audio band and superior audio quality. With a 30-V power supply the device can drive up to 2 x 110 W peak into 4-Ω load and 2 x 60 W continuous into 8-Ω load and features a 2-VRMS analog input interface that works seamlessly with high performance DACs such as Burr-Brown PCM52xx DAC Family from TI (that is, PCM5242 / PCM5252). In addition to excellent audio performance, TPA3244 achieves both high power efficiency and very low power stage idle losses below 0.45 W. This is achieved through the use of 65 mΩ MOSFETs and an optimized gate driver scheme that achieves significantly lower idle losses than typical discrete implementations.
