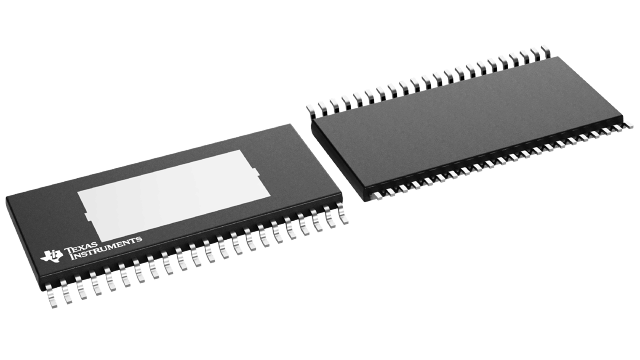

TPA3251D2DDV Texas Instruments - Yeehing Electronics
175-W stereo, 350-W mono, 12- to 38-V supply, analog input Class-D Smart Audio Amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 7.408 |
100 — 249 | 6.039 |
250 — 999 | 4.747 |
1,000 + | 3.22 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Audio Amplifiers |
RoHS | Y |
Series | TPA3251D2 |
Product | Audio Amplifiers |
Class | Class-D |
Output Power | 175 W, 220 W, 350 W |
Mounting Style | SMD/SMT |
Type | Mono, Stereo |
Package / Case | HTSSOP-44 |
THD plus Noise | 0.005 % |
Supply Voltage - Max | 36 V |
Supply Voltage - Min | 12 V |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 70 C |
Packaging | Tube |
Height | 1.2 mm |
Input Type | Analog |
Length | 14.1 mm |
Width | 6.2 mm |
Brand | Texas Instruments |
Gain | 20 dB |
Number of Channels | 4 Channel |
Moisture Sensitive | Yes |
Operating Supply Current | 40 mA |
Product Type | Audio Amplifiers |
PSRR - Power Supply Rejection Ratio | 80 dB |
SNR - Signal to Noise Ratio | 111 dB |
Factory Pack Quantity | 35 |
Subcategory | Audio ICs |
Unit Weight | 0.011933 oz |
For more information, please refer to datasheet
Documents
TPA3251D2DDV Datasheet |
More Information
TPA3251 is a high performance class-D power amplifier that enables true premium sound quality with class-D efficiency. It features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath™ Ultra-HD). This technology allows ultra low distortion across the audio band and superior audio quality. The device can drive up to 2 x 175 W into 4-Ω load and 2 x 220 W into 3-Ω load and features a 2 VRMS analog input interface that works seamlessly with high performance DACs such as TIs PCM5242. In addition to excellent audio performance, TPA3251 achieves both high power efficiency and very low power stage idle losses below 1 W. This is achieved through the use of 60 mΩ MOSFETs and an optimized gate driver scheme that achieves significantly lower idle losses than typical discrete implementations.
