Description

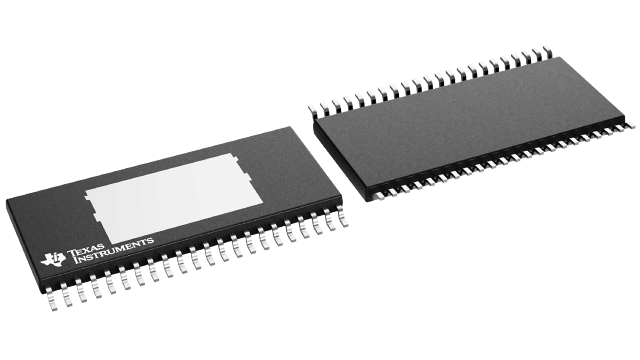

TPA3255DDVR Texas Instruments - Yeehing Electronics
315-W stereo, 600-W mono, 18- to 53.5-V supply, analog input Class-D audio amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.47 |
| 100 — 249 | 5.31 |
| 250 — 999 | 3.97 |
| 1,000 + | 3.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA3255 |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 80 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Unit Weight | 0.011961 oz |
For more information, please refer to datasheet
Documents
| TPA3255DDVR Datasheet |
More Information
TPA3255 is a high performance class-D power amplifier that enables true premium sound quality with class-D efficiency. It features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath™ Ultra-HD). This technology allows ultra low distortion across the audio band and superior audio quality. The device is operated in AD-mode, and can drive up to 2 x 315 W into 4-Ω load at 10% THD and 2 x 150 W unclipped into 8-Ω load and features a 2 VRMS analog input interface that works seamlessly with high performance DACs such as TIs PCM5242. In addition to excellent audio performance, TPA3255 achieves both high power efficiency and very low power stage idle losses below 2.5W. This is achieved through the use of 85 mΩ MOSFETs and an optimized gate driver scheme that achieves significantly lower idle losses than typical discrete implementations.
