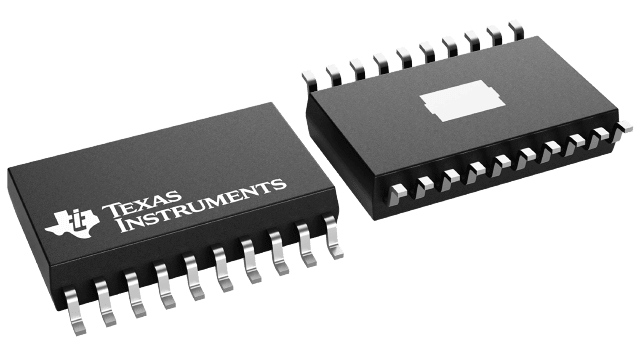

TPA6120A2DWP Texas Instruments - Yeehing Electronics

Stereo, 9.0- to 33.0-V, analog input headphone amplifier with 128 dB dynamic range

Pricing (USD)

Quantity	Unit Price
1 — 99	2.526
100 — 249	2.06
250 — 999	1.619
1,000 +	0.96

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TPA6120A2
Product	Headphone Amplifiers
Class	Class-AB
Output Power	1.5 W
Mounting Style	SMD/SMT
Type	2-Channel Stereo Headphone
Package / Case	HSOP-20
Audio - Load Impedance	8 Ohms
THD plus Noise	0.000065 %
Supply Voltage - Max	30 V
Supply Voltage - Min	10 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Tube
Description/Function	Headphone
Features	Hi-Fi
Height	2.55 mm
Input Type	Differential
Length	12.82 mm
Output Current	700 mA
Output Type	2-Channel Stereo
Supply Type	Single or Dual
Width	7.52 mm
Brand	Texas Instruments
Number of Channels	2 Channel
Supply Current - Max	13 mA
CMRR - Common Mode Rejection Ratio	100 dB
Development Kit	TPA6120A2EVM
Dual Supply Voltage	+/- 9 V, +/- 12 V
Ib - Input Bias Current	-
Maximum Dual Supply Voltage	+/- 15 V
Minimum Dual Supply Voltage	+/- 5 V
Moisture Sensitive	Yes
Operating Supply Current	11.5 mA
Operating Supply Voltage	10 V to 30 V
Output Signal Type	Single
Pd - Power Dissipation	2800 mW
Product Type	Audio Amplifiers
PSRR - Power Supply Rejection Ratio	75 dB
Factory Pack Quantity	25
Subcategory	Audio ICs
Vos - Input Offset Voltage	5 mV
Unit Weight	0.017870 oz

For more information, please refer to datasheet

Documents

TPA6120A2DWP Datasheet

More Information

In applications requiring a high-power output, very high fidelity headphone amplifier, the TPA6120A2 replaces a costly discrete design and allows music, not the amplifier, to be heard. The TPA6120A2’s current-feedback AB amplifier architecture delivers high bandwidth, extremely low noise, and up to 128dB of dynamic range.
