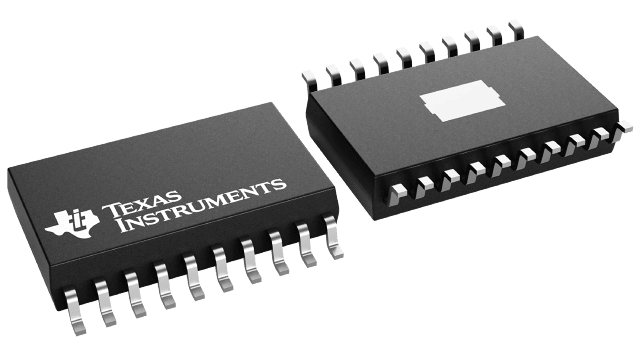

TPA6120A2DWPR Texas Instruments - Yeehing Electronics
Stereo, 9.0- to 33.0-V, analog input headphone amplifier with 128 dB dynamic range
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.105 |
| 100 — 249 | 1.716 |
| 250 — 999 | 1.349 |
| 1,000 + | 0.65 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA6120A2 |
| Product | Headphone Amplifiers |
| Class | Class-AB |
| Output Power | 1.5 W |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo Headphone |
| Package / Case | HSOP-20 |
| Audio - Load Impedance | 8 Ohms |
| THD plus Noise | 0.000065 % |
| Supply Voltage - Max | 30 V |
| Supply Voltage - Min | 10 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Headphone |
| Features | Hi-Fi |
| Height | 2.55 mm |
| Input Type | Differential |
| Length | 12.82 mm |
| Output Current | 700 mA |
| Output Type | 2-Channel Stereo |
| Supply Type | Single or Dual |
| Width | 7.52 mm |
| Brand | Texas Instruments |
| Number of Channels | 2 Channel |
| Supply Current - Max | 13 mA |
| CMRR - Common Mode Rejection Ratio | 100 dB |
| Development Kit | TPA6120A2EVM |
| Dual Supply Voltage | +/- 9 V, +/- 12 V |
| Ib - Input Bias Current | - |
| Maximum Dual Supply Voltage | +/- 15 V |
| Minimum Dual Supply Voltage | +/- 5 V |
| Moisture Sensitive | Yes |
| Operating Supply Current | 11.5 mA |
| Operating Supply Voltage | 10 V to 30 V |
| Output Signal Type | Single |
| Pd - Power Dissipation | 2800 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 75 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Audio ICs |
| Vos - Input Offset Voltage | 5 mV |
| Unit Weight | 0.017870 oz |
For more information, please refer to datasheet
Documents
| TPA6120A2DWPR Datasheet |
More Information
In applications requiring a high-power output, very high fidelity headphone amplifier, the TPA6120A2 replaces a costly discrete design and allows music, not the amplifier, to be heard. The TPA6120A2s current-feedback AB amplifier architecture delivers high bandwidth, extremely low noise, and up to 128dB of dynamic range.
