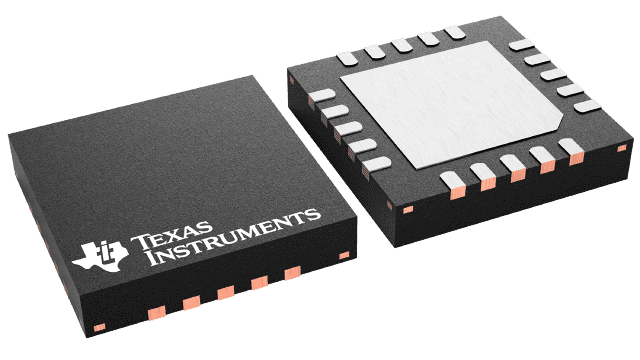

TPA6130A2RTJT Texas Instruments - Yeehing Electronics

138-mW, stereo, analog input headphone amplifier with I2C control interface

Pricing (USD)

Quantity	Unit Price
1 — 99	1.194
100 — 249	0.986
250 — 999	0.708
1,000 +	0.37

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Audio Amplifiers
RoHS	Y
Series	TPA6130A2
Product	Headphone Amplifiers
Class	Class-AB
Output Power	138 mW
Mounting Style	SMD/SMT
Type	2-Channel Headphone
Package / Case	QFN-20
Audio - Load Impedance	16 Ohms
THD plus Noise	0.0027 %
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Description/Function	Headphone/Speaker
Height	0.73 mm
Input Type	Differential
Length	4 mm
Output Type	2-Channel Stereo
Supply Type	Single
Width	4 mm
Brand	Texas Instruments
Number of Channels	2 Channel
Shutdown	Shutdown
Supply Current - Max	6 mA
CMRR - Common Mode Rejection Ratio	68 dB
Development Kit	TPA6130A2EVM
Moisture Sensitive	Yes
Operating Supply Current	4 mA
Operating Supply Voltage	2.5 V to 5.5 V
Output Signal Type	Differential, Single
Pd - Power Dissipation	4100 mW
Product Type	Audio Amplifiers
PSRR - Power Supply Rejection Ratio	109 dB
SR - Slew Rate	300 mV/us
Factory Pack Quantity	250
Subcategory	Audio ICs
Unit Weight	0.001344 oz

For more information, please refer to datasheet

Documents

TPA6130A2RTJT Datasheet

More Information

The TPA6130A2 is a stereo DirectPath™ headphone amplifier with I2C digital volume control. The TPA6130A2 has minimal quiescent current consumption, with a typical IDD of 4 mA, making it optimal for portable applications. The I2C control allows maximum flexibility with a 64 step audio taper volume control, channel independent enables and mutes, and the ability to configure the outputs into stereo, dual mono, or a single receiver speaker BTL amplifier that drives 300 mW of power into 16 Ω loads.
