Texas Instruments

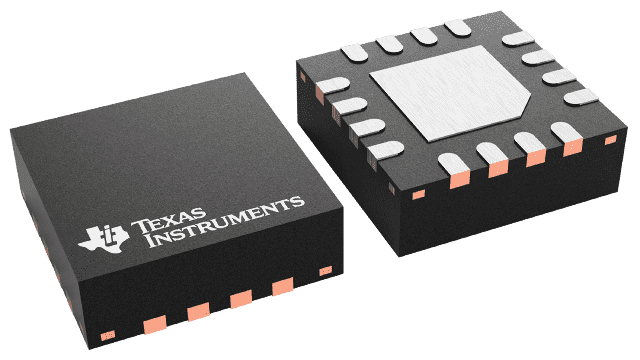

TPA6135A2RTER
TPA6135A2RTER
Regular price
$0.34 USD
Regular price
Sale price
$0.34 USD
Unit price
per
Couldn't load pickup availability
TPA6135A2RTER Texas Instruments - Yeehing Electronics
25-mW, stereo, analog input headphone amplifier with Hi-Z mode
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.317 |
| 100 — 249 | 1.088 |
| 250 — 999 | 0.781 |
| 1,000 + | 0.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA6135A2 |
| Product | Headphone Amplifiers |
| Class | Class-AB |
| Output Power | 25 mW |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | WQFN-16 |
| Audio - Load Impedance | 32 Ohms |
| THD plus Noise | 0.01 % |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Headphone |
| Height | 0.75 mm |
| Input Type | Differential |
| Length | 3 mm |
| Output Type | 2-Channel Stereo |
| Supply Type | Single |
| Width | 3 mm |
| Brand | Texas Instruments |
| Gain | 6.02 dB |
| Number of Channels | 2 Channel |
| Supply Current - Max | 2.9 mA |
| Development Kit | TPA6135A2EVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 2.2 mA |
| Operating Supply Voltage | 3 V, 5 V |
| Output Signal Type | Single |
| Pd - Power Dissipation | 2567 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 100 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Audio ICs |
| Tradename | DirectPath |
| Unit Weight | 0.000705 oz |
For more information, please refer to datasheet
Documents
| TPA6135A2RTER Datasheet |
More Information
The TPA6135A2 (sometimes referred to as TPA6135) is a DirectPath™ stereo headphone amplifier that eliminates the need for external dc-blocking output capacitors. Differential stereo inputs and built-in resistors set the device gain, further reducing external component count. Gain is selectable at 0 dB or 6 dB. The amplifier drives 25 mW into 16 speakers from a single 2.3 V supply. The TPA6135A2 (TPA6135) provides a constant maximum output power independent of the supply voltage, thus facilitating the design for prevention of acoustic shock.
