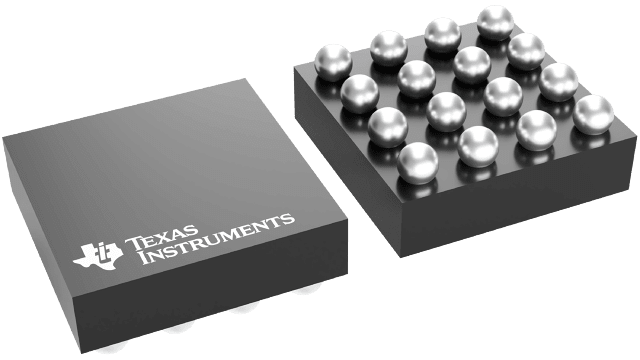

TPA6136A2YFFR Texas Instruments - Yeehing Electronics
25-mW, stereo, analog input headphone amplifier in WCSP
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.519 |
| 100 — 249 | 0.399 |
| 250 — 999 | 0.294 |
| 1,000 + | 0.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Audio Amplifiers |
| RoHS | Y |
| Series | TPA6136A2 |
| Product | Headphone Amplifiers |
| Class | Class-AB |
| Output Power | 25 mW |
| Mounting Style | SMD/SMT |
| Type | 2-Channel Stereo |
| Package / Case | DSBGA-16 |
| Audio - Load Impedance | 16 Ohms |
| THD plus Noise | 0.025 % |
| Supply Voltage - Max | 2.3 V |
| Supply Voltage - Min | 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Description/Function | Headphone |
| Features | Gain Select |
| Height | 0.43 mm |
| Input Type | Differential |
| Length | 1.9 mm |
| Output Current | 1 uA |
| Output Type | 2-Channel Stereo |
| Supply Type | Single |
| Width | 1.9 mm |
| Brand | Texas Instruments |
| Gain | 6.02 dB |
| Number of Channels | 2 Channel |
| Supply Current - Max | 2.9 mA |
| Ib - Input Bias Current | - |
| Operating Supply Current | 2.2 mA |
| Operating Supply Voltage | 5.5 V to 2.3 V |
| Output Signal Type | Single |
| Pd - Power Dissipation | 1250 mW |
| Product Type | Audio Amplifiers |
| PSRR - Power Supply Rejection Ratio | 100 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Audio ICs |
For more information, please refer to datasheet
Documents
| TPA6136A2YFFR Datasheet |
More Information
The TPA6136A2 (sometimes referred to as TPA6136) is a DirectPath™ stereo headphone amplifier that eliminates the need for external dc-blocking output capacitors. Differential stereo inputs and built-in resistors set the device gain, further reducing external component count. Gain is selectable at 0 dB or 6 dB. The amplifier drives 25 mW into 16 speakers from a single 2.3 V supply. The TPA6136A2 (TPA6136) provides a constant maximum output power independent of the supply voltage, thus facilitating the design for prevention of acoustic shock.
