Texas Instruments
TPD12S015AYFFR
TPD12S015AYFFR
Regular price
$0.46 USD
Regular price
Sale price
$0.46 USD
Unit price
per
Couldn't load pickup availability
TPD12S015AYFFR Texas Instruments - Yeehing Electronics
HDMI companion chip w/ Step-up DC-DC, I2C level shifter & high-speed ESD clamps for Portable Apps
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.474 |
| 100 — 249 | 1.217 |
| 250 — 999 | 0.874 |
| 1,000 + | 0.46 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - Specialized |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |

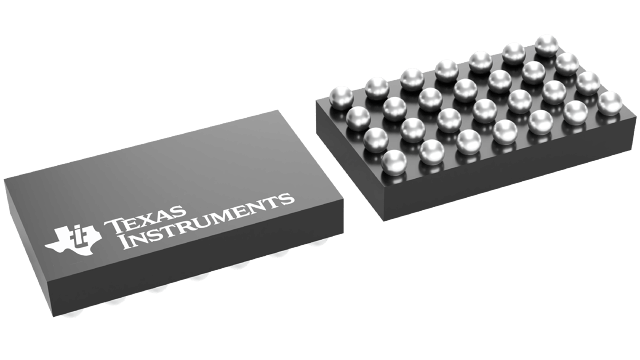

| Package / Case | DSBGA-28 |
| Packaging | Reel |
| Series | TPD12S015A |
| Brand | Texas Instruments |
| Product Type | Interface - Specialized |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.000183 oz |
For more information, please refer to datasheet
Documents
| TPD12S015AYFFR Datasheet |
More Information
The TPD12S015A device is an integrated HDMI companion chip solution. This device offers 8 low capacitance ESD clamps allowing HDMI 1.3/1.4 data rates. The 0.4-mm pitch DSBGA package pin mapping matches the HDMI Type D or Type C connectors. The integrated ESD clamps in monolithic silicon technology provide good matching between each differential signal pair. This provides an advantage over discrete ESD clamp solutions where variations between ESD clamps degrade the differential signal quality.
