TPD12S016RKTR


YeeHing #: Y007-TPD12S016RKTR
Inventory: 5600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

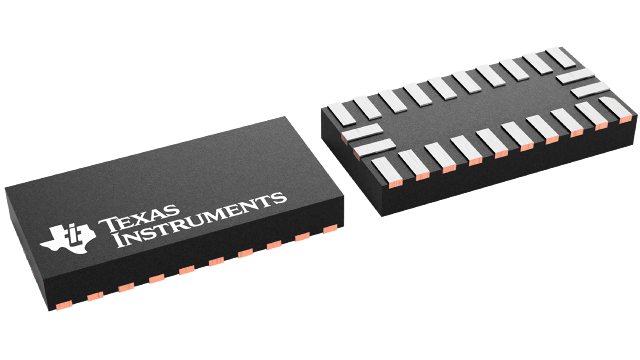

TPD12S016RKTR Texas Instruments - Yeehing Electronics

Value-line HDMI companion chip for Portable applications

Pricing (USD)

Quantity Unit Price
1 — 99 0.94
100 — 249 0.74
250 — 999 0.56
1,000 + 0.41

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category TVS Diodes / ESD Suppressors
RoHS Y
Series TPD12S016
Product Type ESD Suppressors
Vesd - Voltage ESD Contact 8 kV
Polarity Unidirectional
Termination Style SMD/SMT
Clamping Voltage 10 V
Package / Case QFN-24
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Brand Texas Instruments
Factory Pack Quantity 3000
Subcategory TVS Diodes / ESD Suppression Diodes
Unit Weight 0.032741 oz

For more information, please refer to datasheet

Documents

TPD12S016RKTR Datasheet



More Information

The TPD12S016 is a single-chip High Definition Multimedia Interface (HDMI) device with auto-direction sensing I2C voltage level shift buffers, a load switch, and integrated low capacitance high-speed electrostatic discharge (ESD) transient voltage suppression (TVS) protection diodes. A 55-mA current limited 5-V output (5V_OUT) sources the HDMI power line. The control of 5V_OUT and the hot plug detect (HPD) circuitry is independent of the LS_OE control signal, and is controlled by the CT_HPD pin, which enables the detection scheme (5V_OUT and HPD) to be active before enabling the HDMI link. The SDA, SCL, and CEC lines pull up to VCCA on the A side. On the B side, the CEC_B pin pulls up to an internal 3.3-V supply rail, SCL_B and SDA_B each pull up to the 5-V rail (5V_OUT). The SCL and SDA pins meet the I2C specification and drive up to 750 pF capacitive loads, exceeding the HDMI 1.4 specifications. The HPD_B port has a glitch filter to avoid false detection due to plug bouncing during the HDMI connector insertion. TPD12S016 offers reverse current blocking at the 5V_OUT pin. SCL_B, SDA_B, CEC_B pins also feature reverse-current blocking when the system is powered off.
