Texas Instruments
TPD12S520RMNR
TPD12S520RMNR
Regular price
$0.16 USD
Regular price
Sale price
$0.16 USD
Unit price
per
Couldn't load pickup availability
TPD12S520RMNR Texas Instruments - Yeehing Electronics
HDMI recei-Ver port protection and interface device
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.563 |
| 100 — 249 | 0.433 |
| 250 — 999 | 0.319 |
| 1,000 + | 0.16 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - Specialized |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |

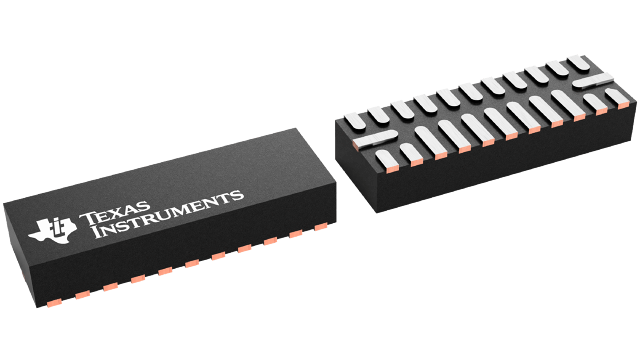

| Package / Case | WQFN-24 |
| Packaging | Reel |
| Series | TPD12S520 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Interface - Specialized |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.000494 oz |
For more information, please refer to datasheet
Documents
| TPD12S520RMNR Datasheet |
More Information
The TPD12S520 is a single-chip electro-static discharge (ESD) circuit protection device for the high-definition multimedia interface (HDMI) receiver port. While providing ESD protection with transient voltage suppression (TVS) diodes, the TVS protection adds little or no additional glitch in the high-speed differential signals. The high-speed transition minimized differential signaling (TMDS) ESD protection lines add only 0.8-pF capacitance.
