Texas Instruments
TPD13S523RSVR
TPD13S523RSVR
Couldn't load pickup availability

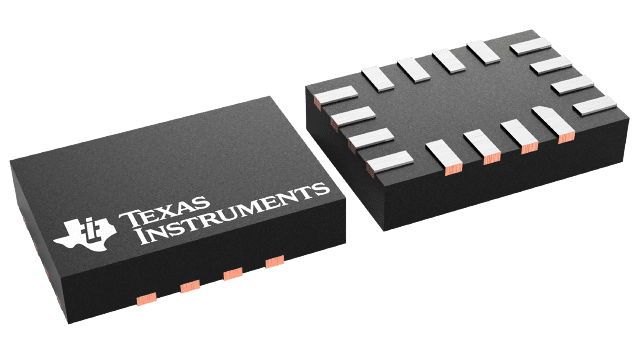

TPD13S523RSVR Texas Instruments - Yeehing Electronics
13-channel HDMI Port solution with ESD protection and current-limit load switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.504 |
| 100 — 249 | 0.388 |
| 250 — 999 | 0.285 |
| 1,000 + | 0.13 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD13S523 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 12 kV |
| Vesd - Voltage ESD Air Gap | 14 kV |
| Polarity | Unidirectional |
| Number of Channels | 5 Channel, 8 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 6 V |
| Working Voltage | 5.5 V |
| Clamping Voltage | 13 V |
| Ipp - Peak Pulse Current | 3 A |
| Cd - Diode Capacitance | 1 pF |
| Package / Case | UQFN-16 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Current Rating | 10 uA |
| Brand | Texas Instruments |
| Operating Supply Voltage | 5.5 V |
| Factory Pack Quantity | 3000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Vf - Forward Voltage | 0.95 V |
| Unit Weight | 0.000233 oz |
For more information, please refer to datasheet
Documents
| TPD13S523RSVR Datasheet |
More Information
The TPD13S523 device is a single-chip integrated IEC 61000-4-2 ESD protection solution for HDMI 1.4 or HDMI 1.3 interfaces. This device offers 13 channels of TVS diodes with flow-through pin mapping that matches HDMI connector high-speed lines. While providing ESD protection, the TPD13S523 adds little to no additional distortion to the high-speed differential signals. The monolithic integrated circuit technology ensures that there is excellent matching between the two-signal pair of the differential line (< 0.05-pF differential matching between TMDS lines). This offers an advantage over discrete ESD solutions where variations between two different ESD protection circuits may significantly degrade the differential signal quality.
