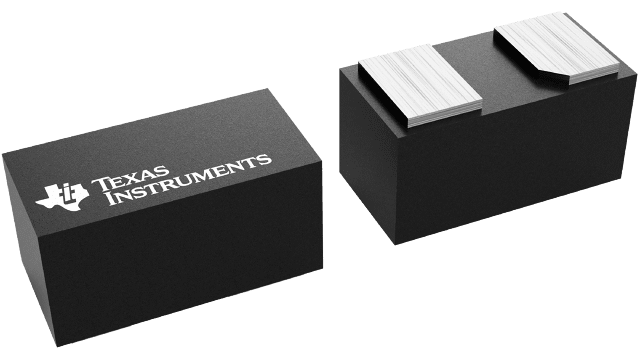

TPD1E01B04DPLR Texas Instruments - Yeehing Electronics
0.18-pF, ±3.6-V, ±15-kV ESD protection diode in 0402 & 0201 packages for USB-C
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.141 |
| 100 — 249 | 0.096 |
| 250 — 999 | 0.074 |
| 1,000 + | 0.03 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD1E01B04 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 15 kV |
| Polarity | Bidirectional |
| Number of Channels | 1 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 6.4 V |
| Clamping Voltage | 15 V |
| Cd - Diode Capacitance | 0.18 pF |
| Package / Case | X2SON-2 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Factory Pack Quantity | 15000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Unit Weight | 0.000007 oz |
For more information, please refer to datasheet
Documents
| TPD1E01B04DPLR Datasheet |
More Information
The TPD1E01B04 is a bidirectional TVS ESD protection diode array for USB Type-C and Thunderbolt 3 circuit protection. The TPD1E01B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4).
