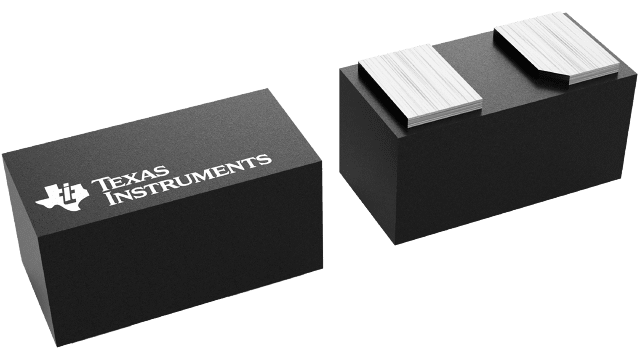

TPD1E04U04DPLR Texas Instruments - Yeehing Electronics
0.5-pF, 3.6-V, ±16-kV ESD protection diode with in 0402 & 0201 packages for HDMI 2.0 & USB 3.0
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.198 |
| 100 — 249 | 0.135 |
| 250 — 999 | 0.104 |
| 1,000 + | 0.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | TVS Diodes / ESD Suppressors |
| RoHS | Y |
| Series | TPD1E04U04 |
| Product Type | ESD Suppressors |
| Vesd - Voltage ESD Contact | 16 kV |
| Vesd - Voltage ESD Air Gap | 16 kV |
| Polarity | Unidirectional |
| Number of Channels | 1 Channel |
| Termination Style | SMD/SMT |
| Breakdown Voltage | 4.5 V |
| Working Voltage | 3.6 V |
| Clamping Voltage | 8.9 V |
| Ipp - Peak Pulse Current | 16 A |
| Cd - Diode Capacitance | 0.65 pF |
| Package / Case | X2SON-2 |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Operating Supply Voltage | 3.6 V |
| Factory Pack Quantity | 15000 |
| Subcategory | TVS Diodes / ESD Suppression Diodes |
| Vf - Forward Voltage | 800 mV |
| Unit Weight | 0.000007 oz |
For more information, please refer to datasheet
Documents
| TPD1E04U04DPLR Datasheet |
More Information
The TPD1E04U04 is a unidirectional TVS ESD protection diode for HDMI 2.0 and USB 3.0 circuit protection. The TPD1E04U04 is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4).
